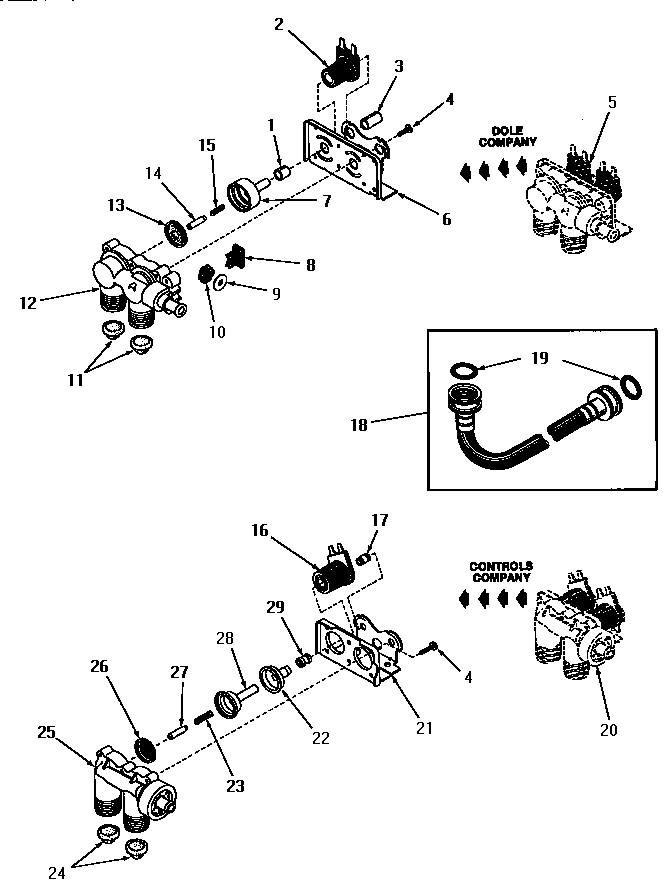

FA9101 01 – 25832 AND 25833 MIXING VALVE ASSEMBLIES

FA9101 01 – 25832 AND 25833 MIXING VALVE ASSEMBLIES

Written by

in

FA9101 01 – 25832 AND 25833 MIXING VALVE ASSEMBLIES

Products

PositionProduct
1MAY 24129
2MAY 24126
3MAY 24128
4MAY 25817C
6MAY Y24127
7MAY 24130
8MAY Y24135
9MAY 23224G
10MAY 23224C
12MAY 24125
13MAY 24134
14MAY 24132
15MAY 24131
16MAY 24596A
17MAY 25817M
18MAY 20241
19MAY 20290
20SEE NOTE GROUND WIRE, GREEN
21MAY 25817B
22MAY 25817E
23MAY 25817G
24MAY 24122
25MAY 24123
26MAY 25817K
27MAY 25817H
28MAY 25817F
29MAY 25817D
