FA9103 14 – CONTROL PANEL AND CONTROLS

FA9103 14 – CONTROL PANEL AND CONTROLS

Written by

in

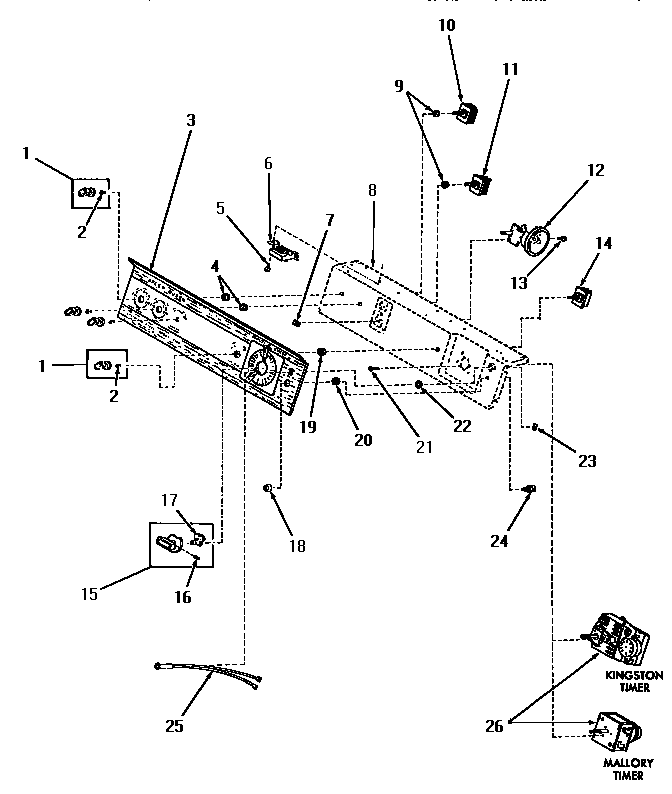

FA9103 14 – CONTROL PANEL AND CONTROLS

Products

PositionProduct
1MAY 24291
2MAY 23392
3MAY 24504
4MAY 24391
5WP3177991 Whirlpool Screw
6MAY 21975
7MAY 24522
8SEE NOTE GROUND WIRE, GREEN
9MAY 91176
10MAY 24392
11MAY 24431
12MAY 26051
13WP90767 Whirlpool Screw
14MAY 24580
15MAY 24290
16MAY 20310
17MAY 24283
18MAY 23399
19MAY 23406
20MAY 23400
21MAY 70212
22MAY 25043
23MAY 25042
24MAY 23401
25MAY 25045
26MAY 24815
