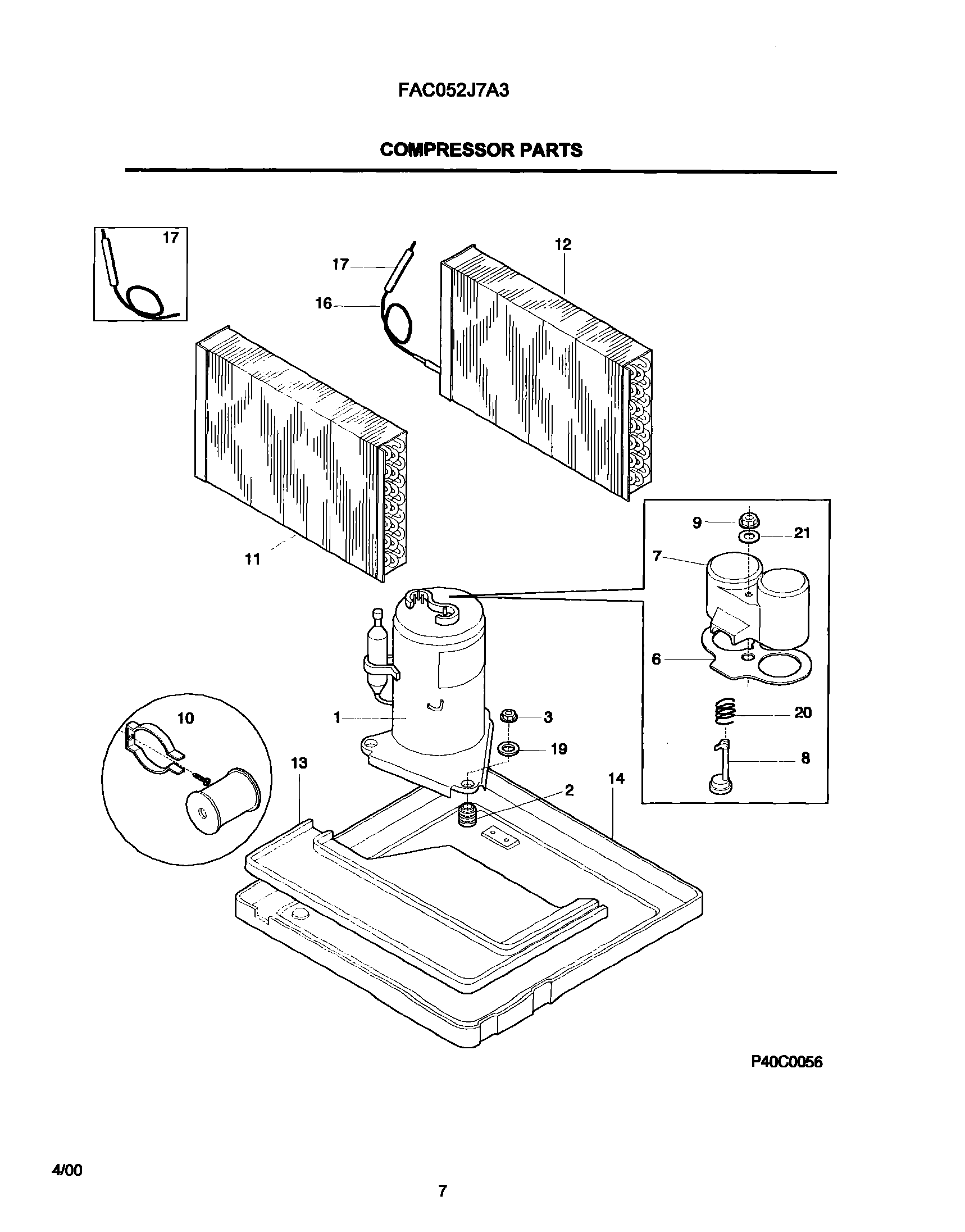

FAC052J7A3 08 – COMPRESSOR

FAC052J7A3 08 – COMPRESSOR

Written by

in

FAC052J7A3 08 – COMPRESSOR

Products

PositionProduct
1WCI 5304417319
2GROMMET,COMPRESSOR MTG ,(3)
3NUT,COMPRESSOR MTG ,(3)
6WCI 5303291330
7WCI 5303291329
8WCI 5304417320
9WCI 5303294292
10WCI 5303317601
11WCI 309637401
12WCI 5303307226
13WCI 5303302849
14WCI 5304413780
16CAPILLARY TUBE-CUT TO 40“ (2)
17WCI 5304413857
19WASHER,COMPRESSOR MTG
20WCI 5303291328
21WCI 5303293809
