FAC054J7A1 03 – CONTROL PARTS

FAC054J7A1 03 – CONTROL PARTS

Written by

in

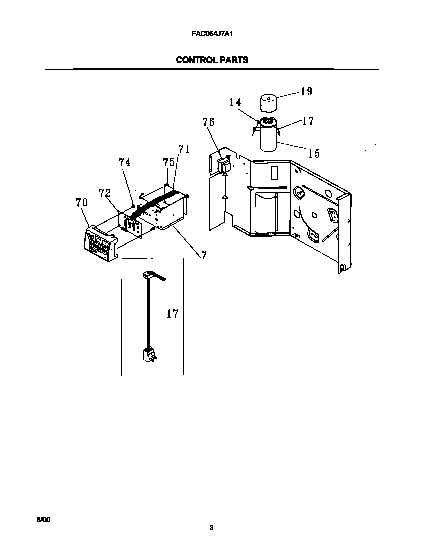

FAC054J7A1 03 – CONTROL PARTS

Products

PositionProduct
*78563THERMISTOR HOLDER ASSY
*78564Wiring diagram
*78562WCI 309111201
7WCI 309340402
10WCI 309602403
12WCI 5304414108
13WCI 5303316594
14134178901 Frigidaire Screw
15WCI 5303303086
17WCI 309343101
19WCI 5303302855
71WCI 309340503
72PC Board,input ,11.5 MM display
743201861 Frigidaire Screw
75PC BOARD-SUPPORT HARDWARE
76WCI 309111601
