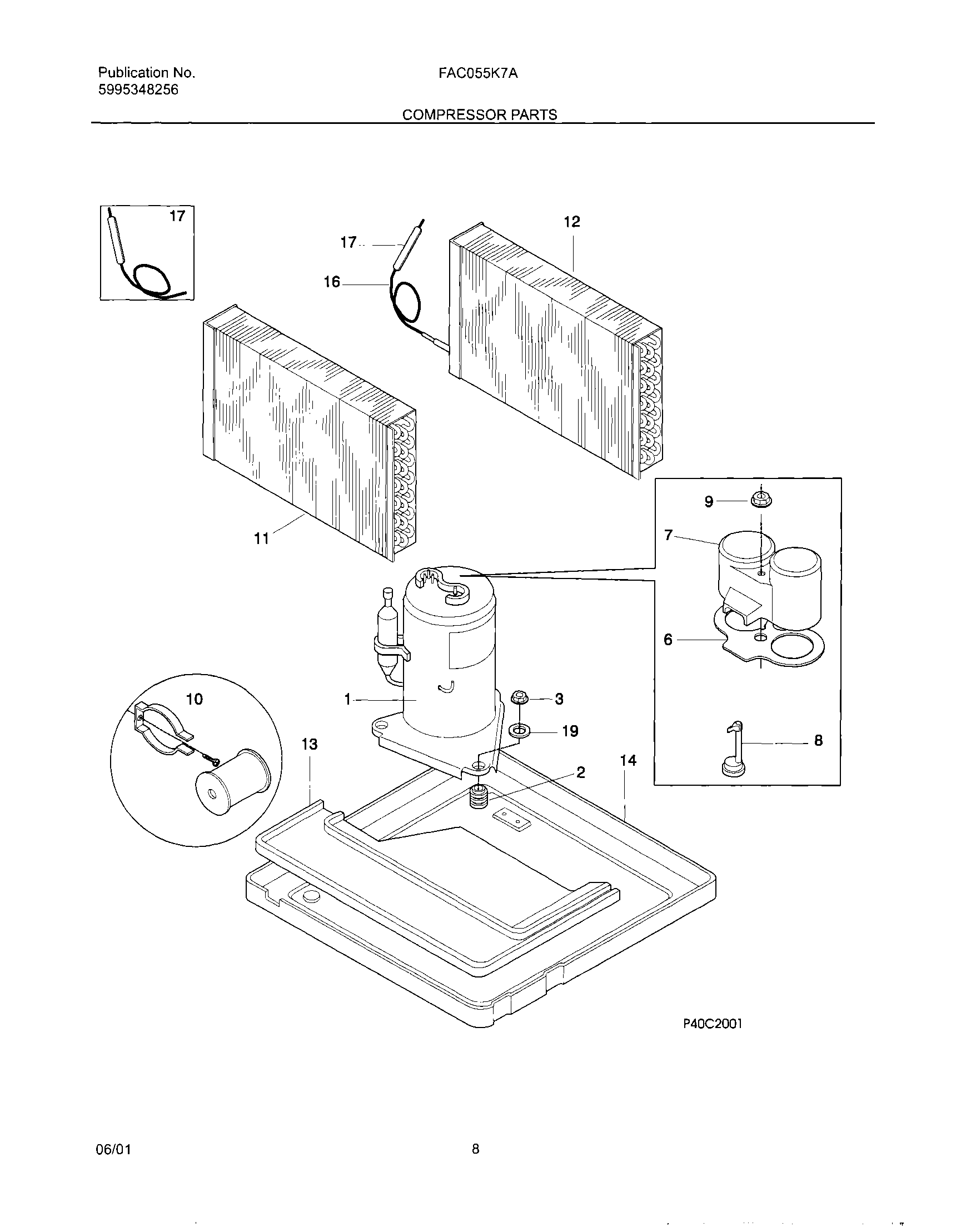

FAC055K7A1 09 – COMPRESSOR

Written by

Products

Position	Product
NI	WASHER,COMPRESSOR MTG
1	WCI 5304417319
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 5303291330
7	WCI 5304416126
8	WCI 5304417320
9	WCI 5303294292
10	WCI 5303317601
11	WCI 309604223
12	WCI 5303302850
13	WCI 5303302849
14	WCI 5304413780
16	Capillary Tube,45 inch long ,cut to length
17	WCI 5304413857
19	WCI 309112501
