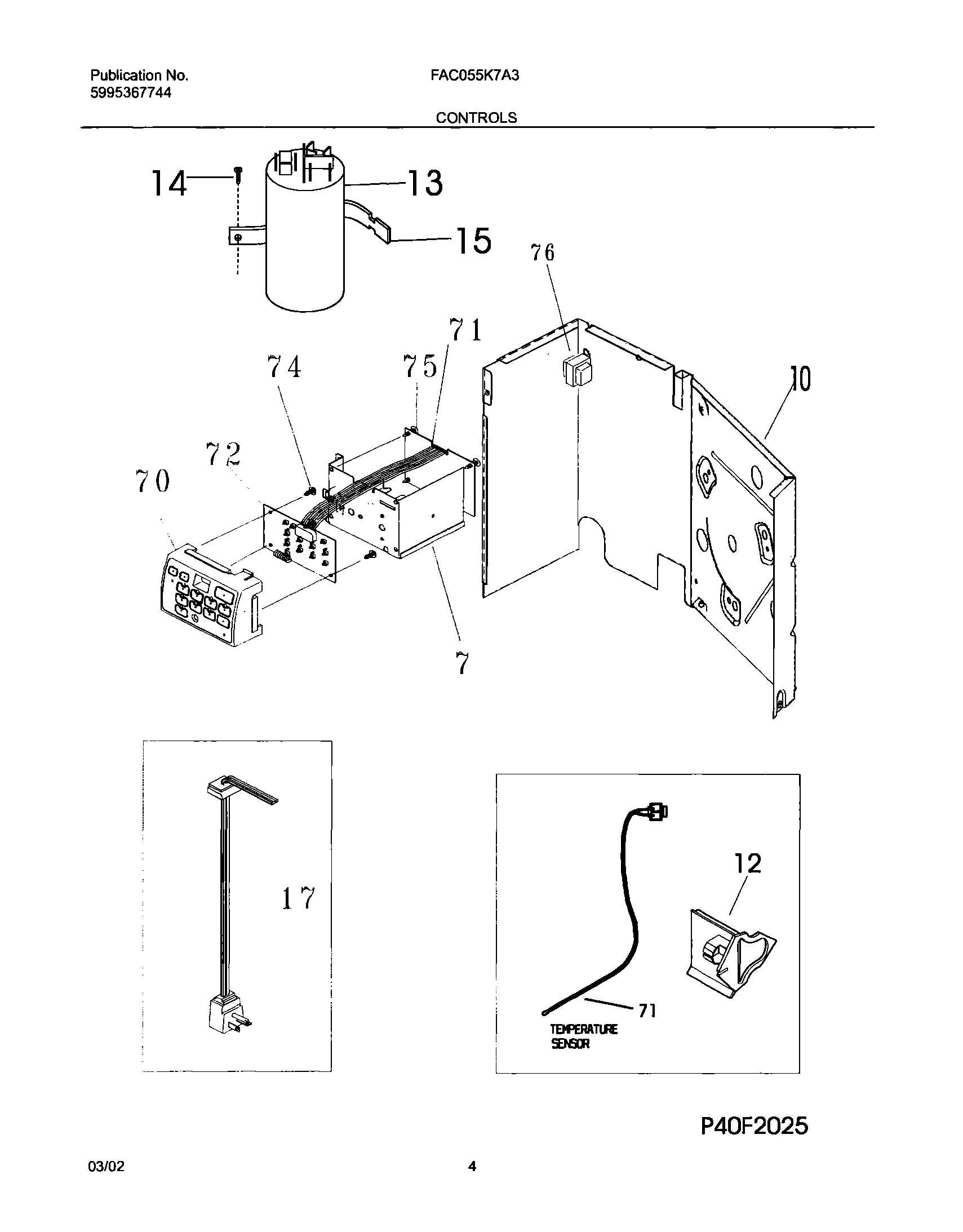

FAC055K7A3 05 – CONTROLS

FAC055K7A3 05 – CONTROLS

Written by

in

FAC055K7A3 05 – CONTROLS

Products

PositionProduct
NIWCI 309111201
NIRIBBON PROTECTOR ELEC CNTRL
NIScrew,Ph truss hd ,8-18 x 0.38 ,ground
7WCI 309643801
10WCI 309643702
12THERMISTOR HOLDER ASSY
13WCI 5304426655
14134178901 Frigidaire Screw
15Strap,capacitor mtg.
17WCI 309343101
70Enclosure,elec control mt
71PC Board,power ,w/temp sensor
72WCI 309350402
743201861 Frigidaire Screw
75PC BOARD-SUPPORT HARDWARE
76WCI 309111601
