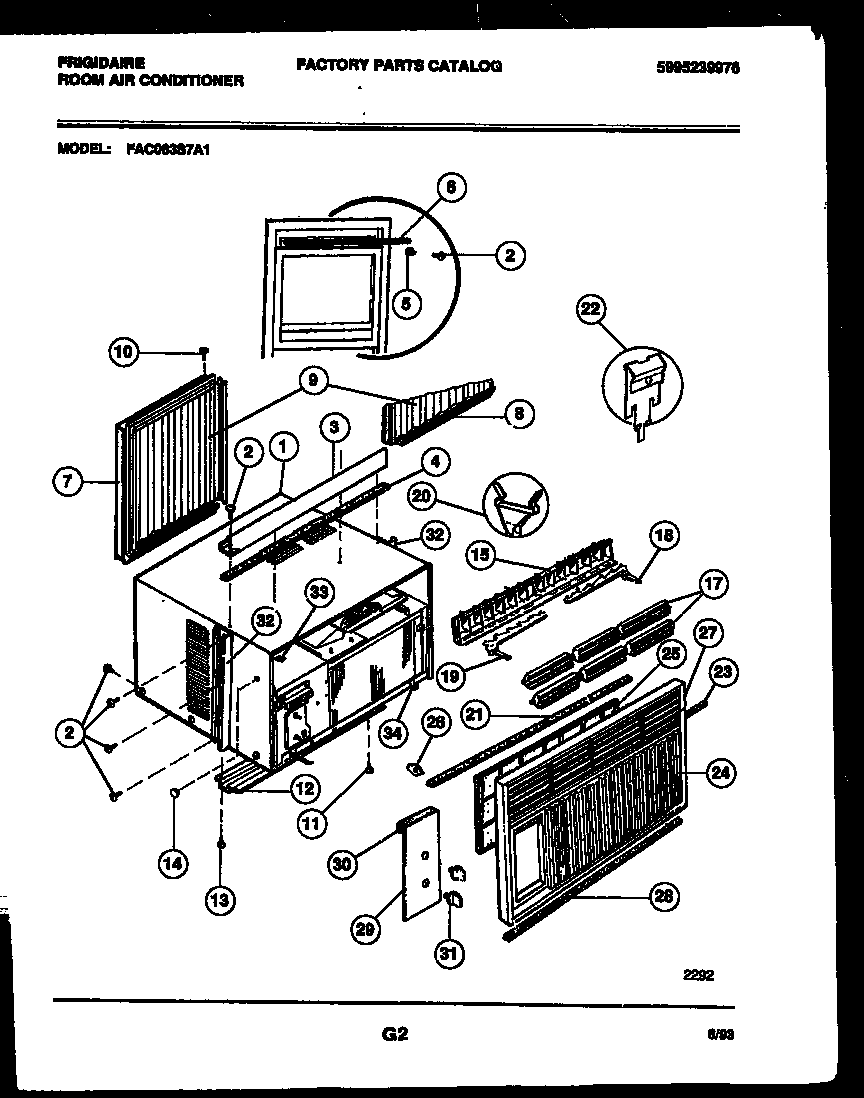

FAC063S7A1 02 – CABINET PARTS

Products

Position	Product
1	WCI 5303270060
2	134178901 Frigidaire Screw
3	WCI 5303270064
4	WCI 08016226
5	BRACKET
6	5304407729 Frigidaire Air Conditioner Seal
7	WCI 5303270061
8	WCI 5303270062
9	WCI 5303270075
10	WCI 5308002974
11	WCI 08016080
12	WCI 5303270072
13	SCREW
14	SCREW
15	VERTICAL LOUVER & LINK ASSY
17	WCI 5303300112
18	WCI 5303293758
19	WCI 5303293759
20	WCI 5303001844
21	SEAL TOP FRAME
22	SPRING CLIP-FRONT
23	WCI 3017137
24	FRONT-COMPLETE
25	FILTER-AIR
26	INSERT
27	WCI 5303280313
28	WCI 5303280312
29	WCI 5303300109
30	SEAL-DIAL PLATE
31	WCI 5303271478
32	WCI 5303298326
33	NUT - FRONT LOCK
34	WCI 5303001784
