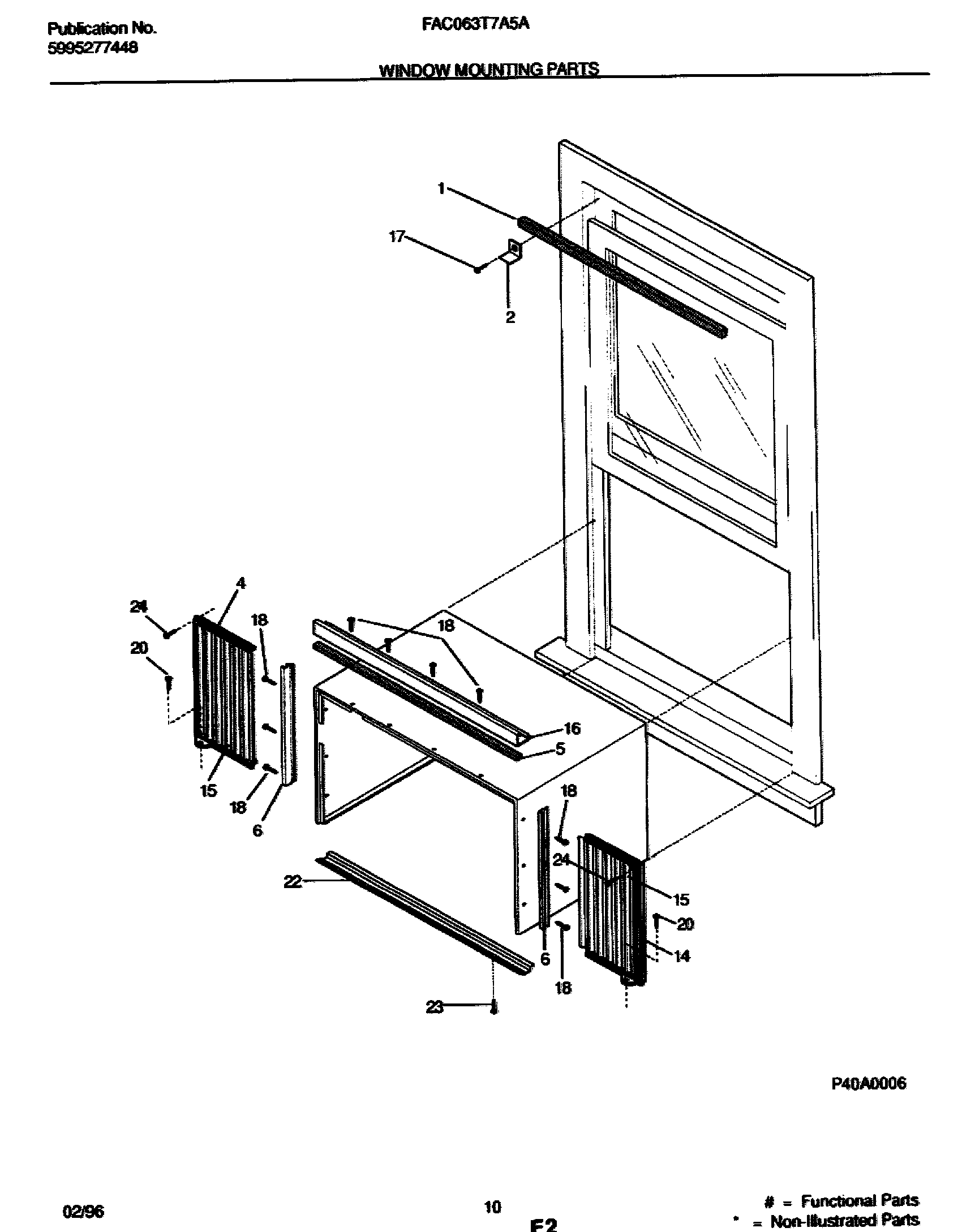

FAC063T7A5A 11 – WINDOW MOUNTING PARTS

Products

Position	Product
NI	INSTRUCTIONS, INSTALLATION
1	5304407729 Frigidaire Air Conditioner Seal
2	BRACKET
4	WCI 5303302860
5	WCI 08016226
6	WCI 5303303795
14	FRAME, RIGHT
15	WCI 5303302862
16	WCI 5303302859
17	SCREW-WOOD
18	134178901 Frigidaire Screw
20	WCI 5303295750
22	RETAINER, BOTTOM
23	SCREW
24	WCI 5308002974
