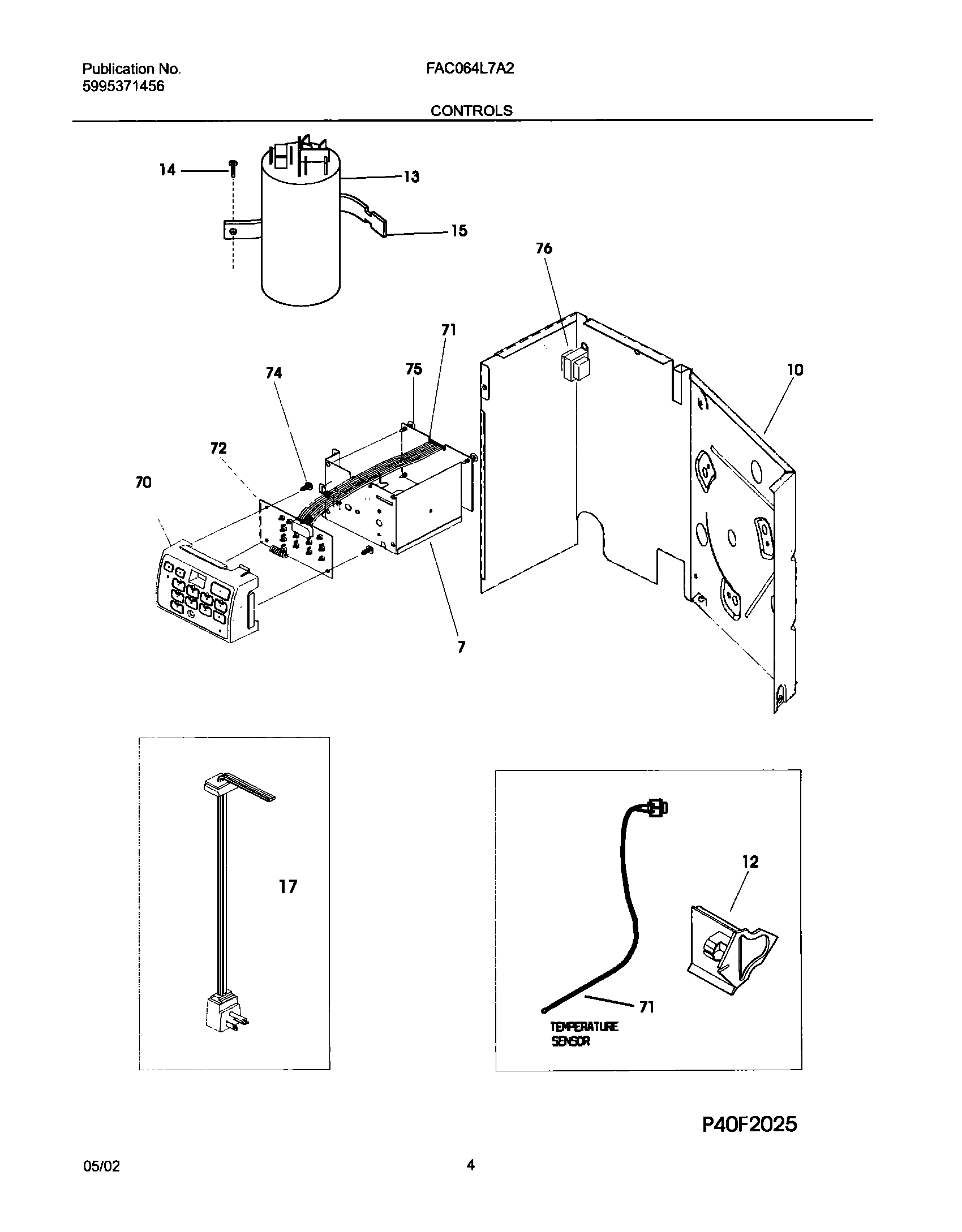

FAC064L7A2 05 – CONTROLS

FAC064L7A2 05 – CONTROLS

Written by

in

FAC064L7A2 05 – CONTROLS

Products

PositionProduct
NIWCI 309111201
NIRIBBON PROTECTOR ELEC CNTRL
NIScrew,Ph truss hd ,8-18 x 0.38 ,ground
7WCI 309643801
10WCI 309643702
12THERMISTOR HOLDER ASSY
13WCI 5304426449
14134178901 Frigidaire Screw
15Strap,capacitor mtg.
17WCI 309343101
70Enclosure,elec control mt
71WCI 309340503
72PC Board,input ,11.5 MM display
743201861 Frigidaire Screw
75PC BOARD-SUPPORT HARDWARE
76WCI 309111601
