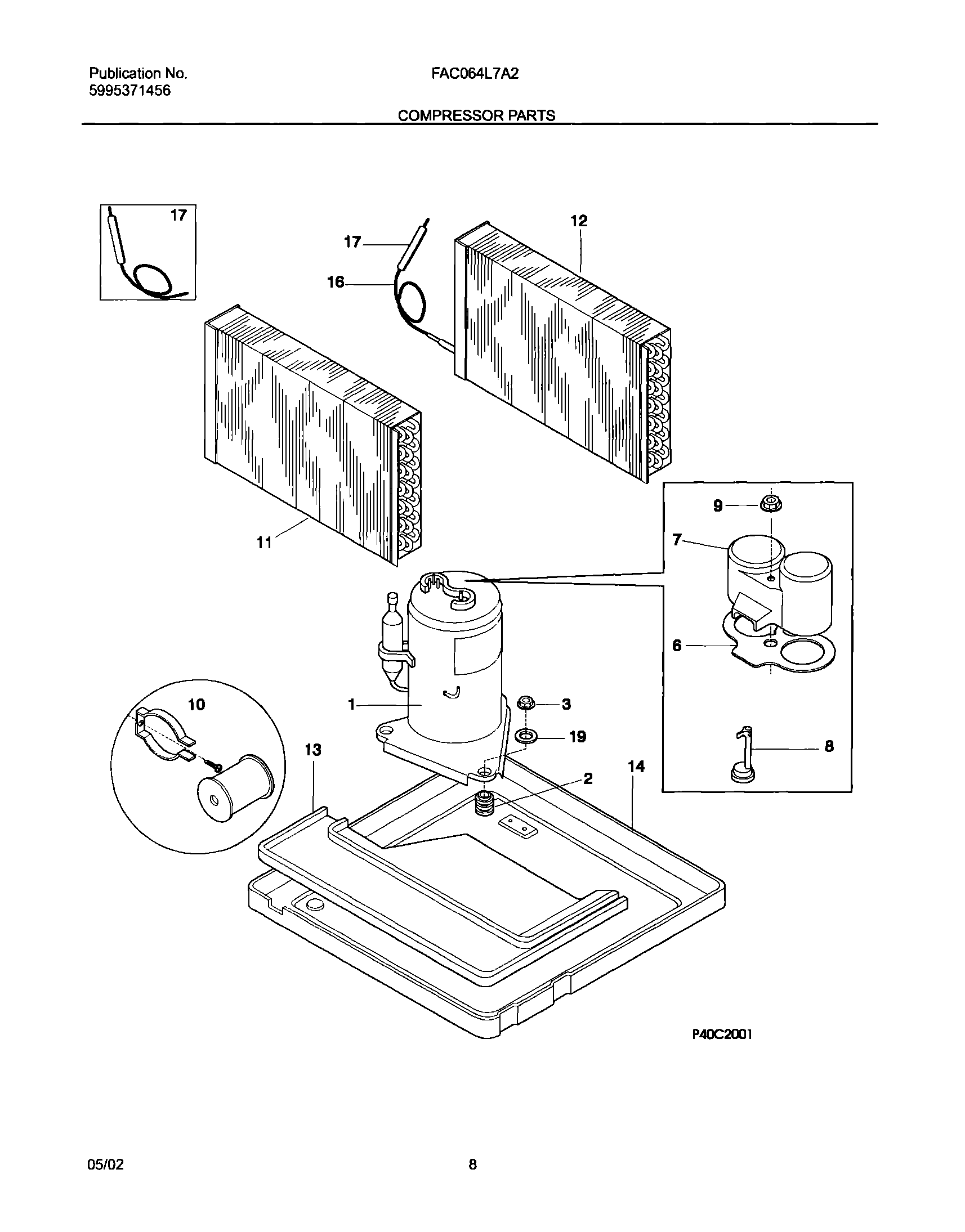

FAC064L7A2 09 – COMPRESSOR PARTS

FAC064L7A2 09 – COMPRESSOR PARTS

Written by

in

FAC064L7A2 09 – COMPRESSOR PARTS

Products

PositionProduct
NIWCI 5303290357
NIWCI 309112501
1WCI 309616921
2GROMMET,COMPRESSOR MTG ,(3)
3NUT,COMPRESSOR MTG ,(3)
6WCI 3201668
7WCI 5304405245
8WCI 5303317553
9WCI 3201670
10WCI 5303317601
11WCI 309637507
12WCI 309645303
13Tray,evap drip
14Base,compressor mt. ,with studs
16Capillary Tube,45 inch long ,cut to length
175300265301 Frigidaire Air Conditioner P1 Filter Drier
19WASHER,COMPRESSOR MTG
