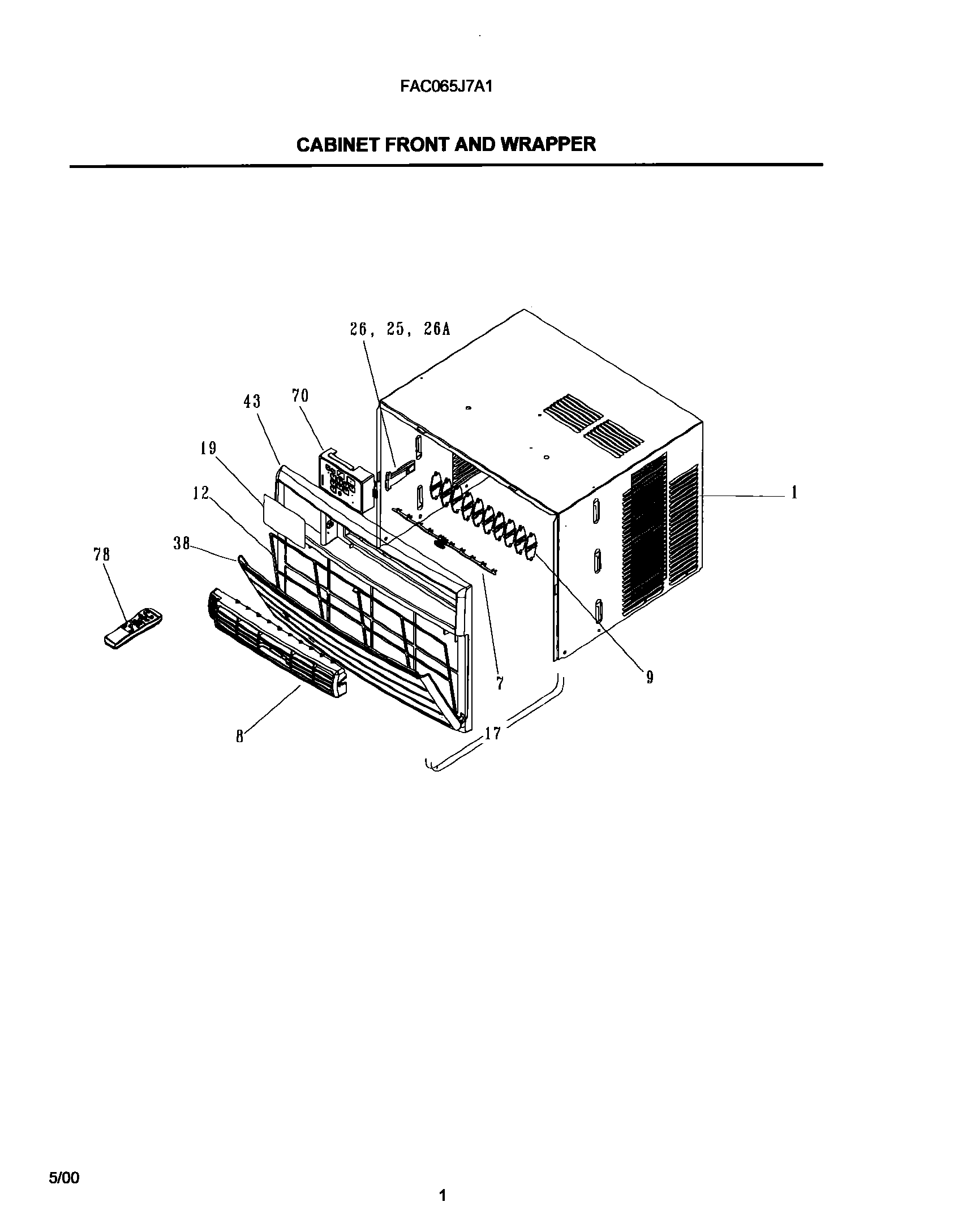

FAC065J7A1 02 – CABINET FRONT AND WRAPPERadmin2025-04-26T09:02:48+00:00FAC065J7A1 02 – CABINET FRONT AND WRAPPER
Products
| Position | Product |
|---|
| NI | Louver Assy,horizontal ,Incl-7,8,9 |
| 1 | WCI 5304413783 |
| 7 | Link,vertical louver ,with handle |
| 8 | WCI 309639301 |
| 9 | WCI 309342001 |
| 12 | WCI 3096343501 |
| 17 | Front-cabinet,4 way ,complete assy |
| 19 | Overlay,control |
| 25 | WCI 309328601 |
| 26 | Handle,vent door |
| 26A | WCI 309330201 |
| 38 | WCI 309639201 |
| 43 | WCI 309639101 |
| 70 | Enclosure,elec control mt |
| 78 | WCI 309342604 |
