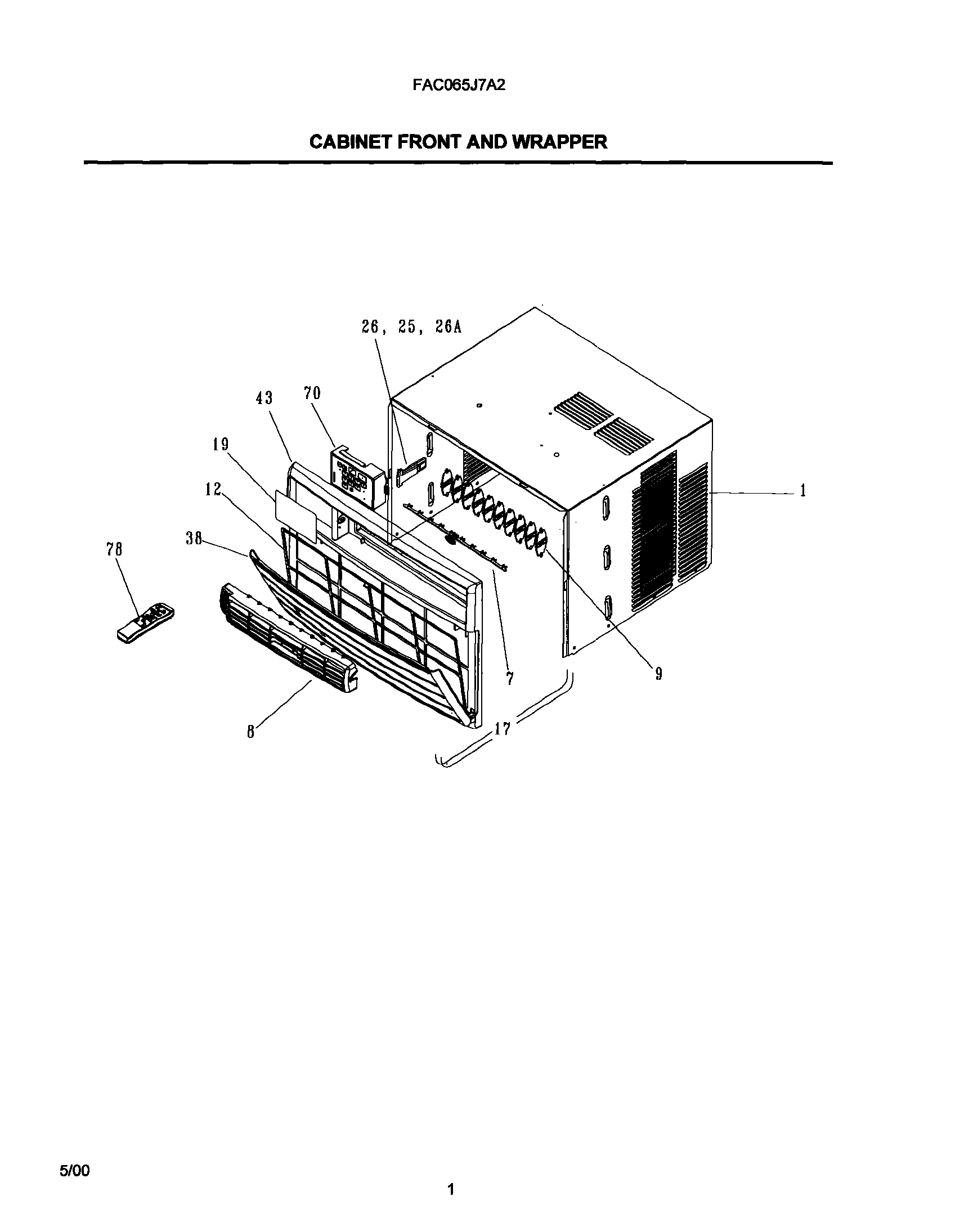

FAC065J7A2 02 – CABINET FRONT AND WRAPPER

Written by

Products

Position	Product
NI	Louver Assy,horizontal ,Incl-7,8,9
1	WCI 5304413783
7	Link,vertical louver ,with handle
8	WCI 309639301
9	WCI 309342001
12	WCI 3096343501
17	Front-cabinet,4 way ,complete assy
19	Overlay,control
25	WCI 309328601
26	Handle,vent door
26A	WCI 309330201
38	WCI 309639201
43	WCI 309639101
70	Enclosure,elec control mt
78	WCI 309342604
