FAC065L7A2 05 – CONTROLS

FAC065L7A2 05 – CONTROLS

Written by

in

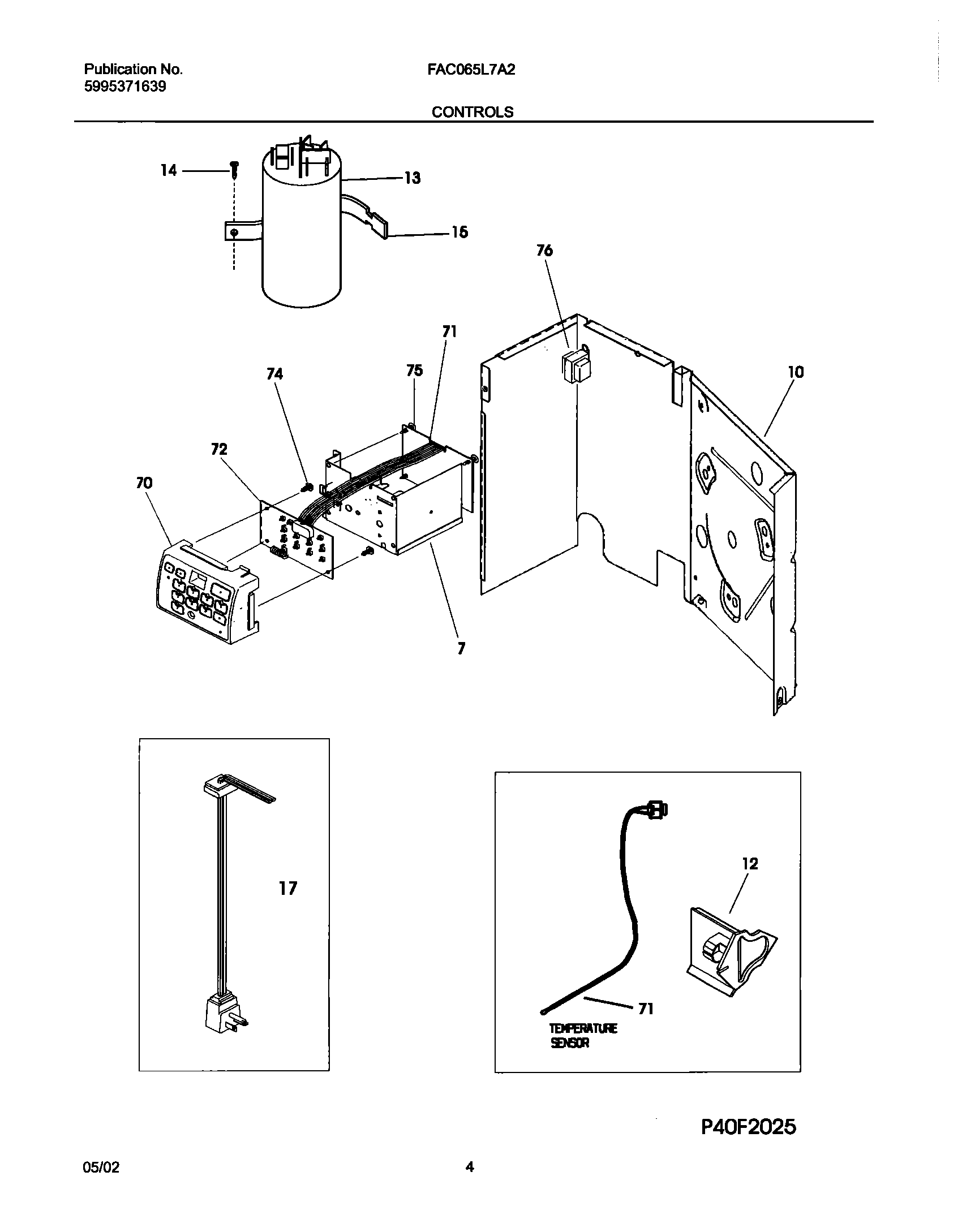

FAC065L7A2 05 – CONTROLS

Products

PositionProduct
NIWCI 309111201
NIRIBBON PROTECTOR ELEC CNTRL
NI134178901 Frigidaire Screw
7WCI 309643801
10WCI 309643702
12THERMISTOR HOLDER ASSY
13WCI 5304426449
14Screw,Ph truss hd ,8-18 x 0.38 ,ground
15Strap,capacitor mtg.
17WCI 309343101
70Enclosure,elec control mt
71WCI 309340503
72PC Board,input ,11.5 MM display
743201861 Frigidaire Screw
75PC BOARD-SUPPORT HARDWARE
76WCI 309111601
