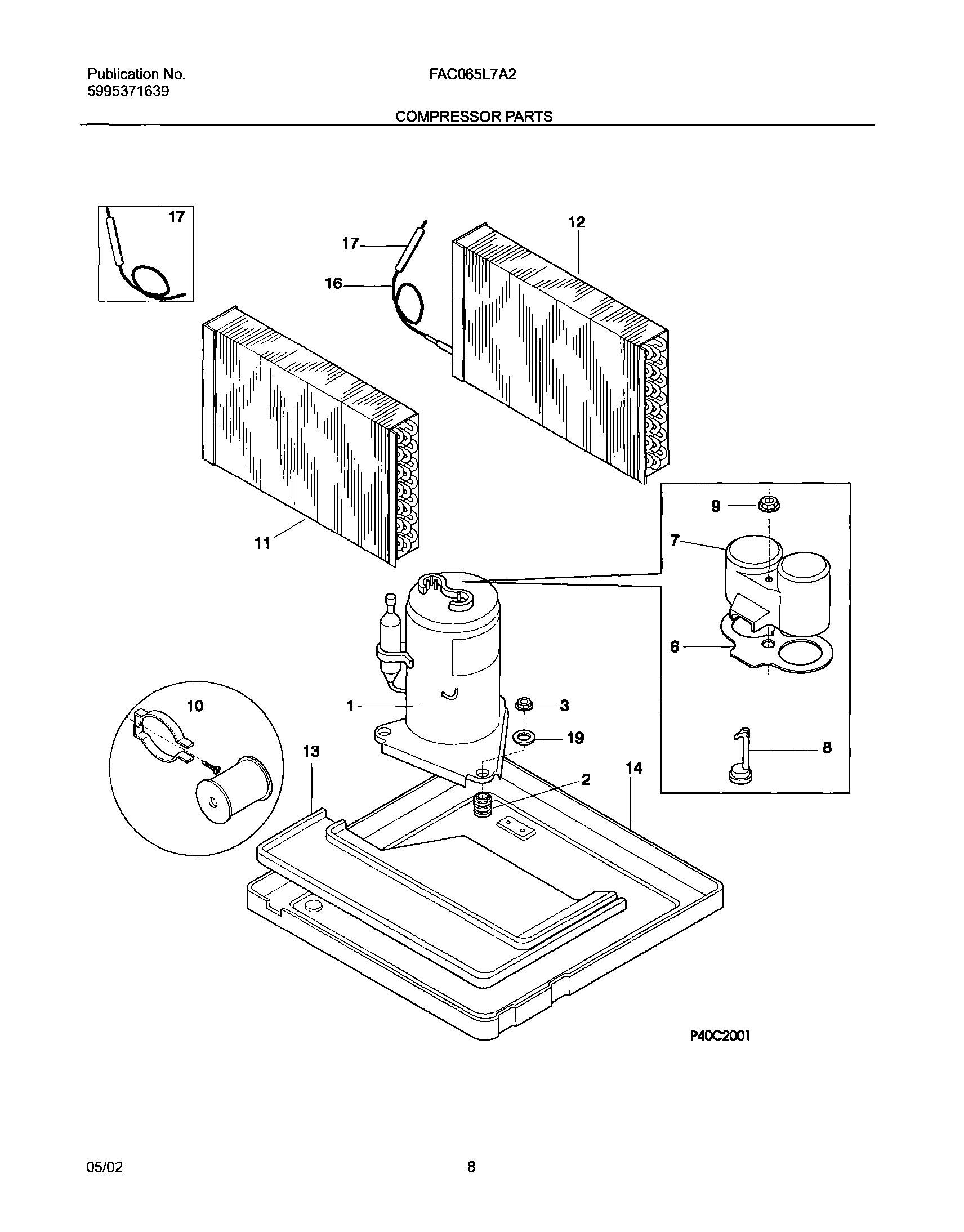

FAC065L7A2 09 – COMPRESSOR PARTS

Products

Position	Product
NI	134178901 Frigidaire Screw
NI	WCI 309112501
NI	WCI 5303290357
1	WCI 309616921
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 3201668
7	WCI 5304405245
8	WCI 5303317553
9	WCI 3201670
10	WCI 5303317601
11	WCI 309637507
12	WCI 309645303
13	Tray,evap drip
14	Base,compressor mt. ,with studs
16	Capillary Tube,45 inch long ,cut to length
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
19	WASHER,COMPRESSOR MTG
