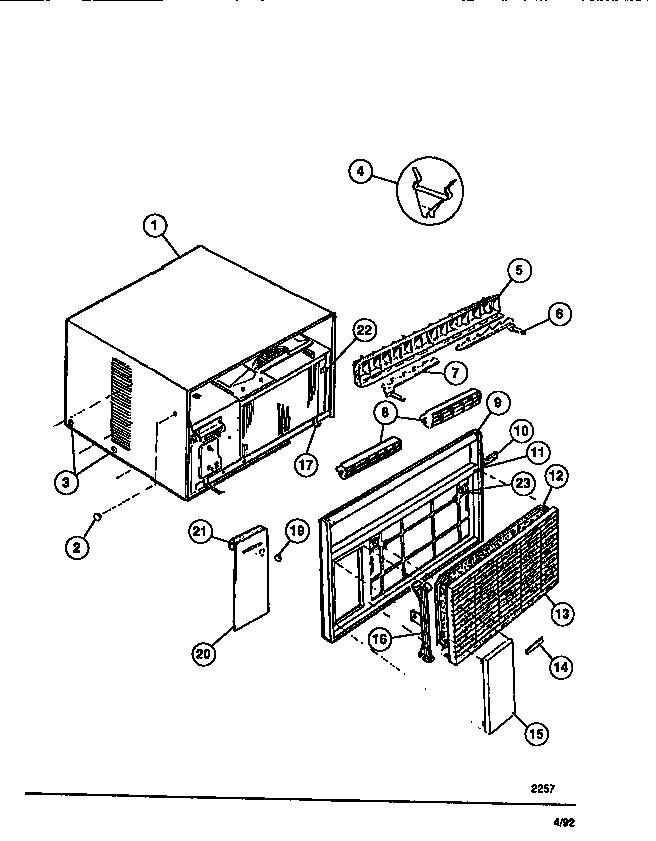

FAC079P7B2 02 – CABINET FRONT & WRAPPER

FAC079P7B2 02 – CABINET FRONT & WRAPPER

Written by

in

FAC079P7B2 02 – CABINET FRONT & WRAPPER

Products

PositionProduct
1WCI 5303270060
2WCI 08016091
3134178901 Frigidaire Screw
4WCI 5303001844
5VERTICAL LOUVER & LINK ASSY
6LINK-VERTICAL LOUVER RH
7LINK VERTICAL LOUVER LH
8LOUVER
9FRONT COMPLETE (FRONT DOES NOT INCLUDE PANEL & DOOR)
10WCI 08007482
11WCI 5303286407
12FILTER
13PANEL, FRONT, W/DOOR
14PLATE-NAME
15DOOR
16TRACK
17WCI 5303001784
19WCI 5303002189
20WCI 5303286406
21SEAL-DIAL PLATE
22BRACKET-FRONT (NON-ILLUSTRATED)
23SCREW-FRONT
