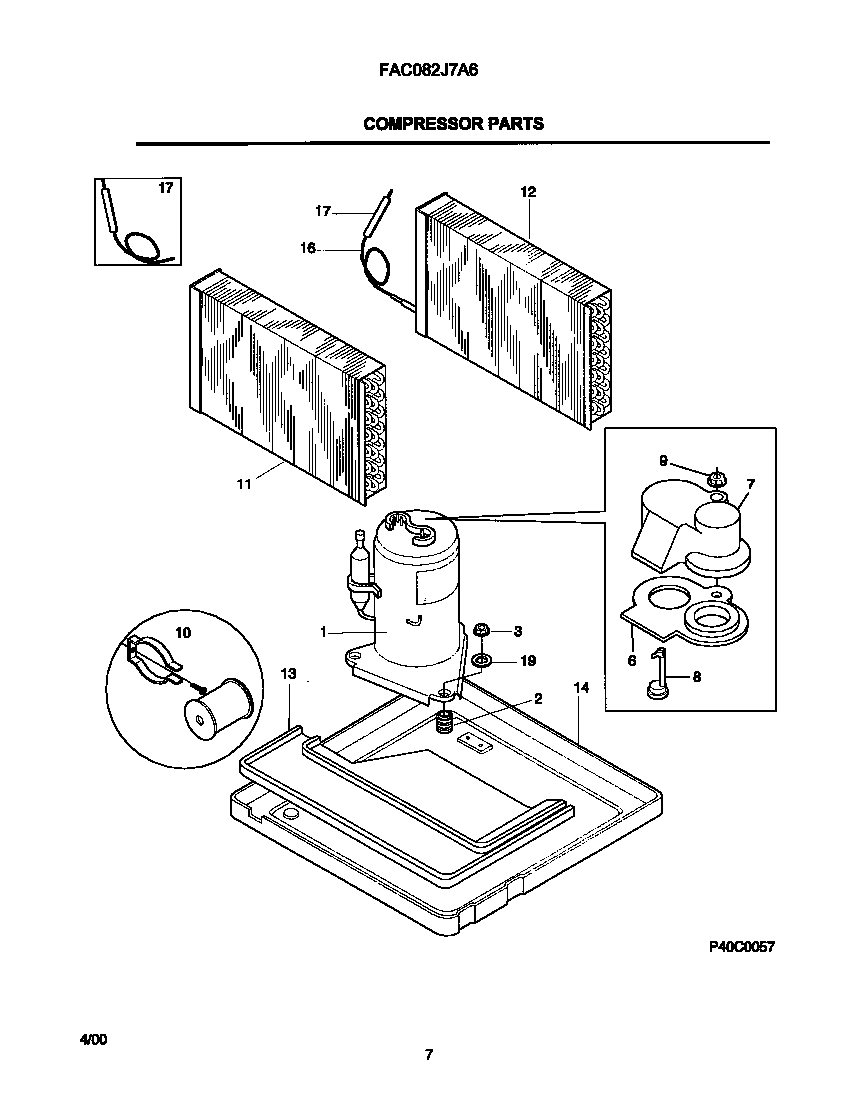

FAC082J7A6 05 – COMPRESSOR PARTS

Products

PositionProduct
1WCI 5304414415
2GROMMET,COMPRESSOR MTG ,(3)
3NUT,COMPRESSOR MTG ,(3)
6GASKET-TERMINAL
7COVER-TERMINAL
8WCI 3202920
9WCI 5303211017
10WCI 5303317601
11WCI 309604207
12WCI 5303302850
13WCI 5303302849
14WCI 5304413780
16CAPILLARY TUBE
17Tube-process,condenser
19WASHER,COMPRESSOR MTG
