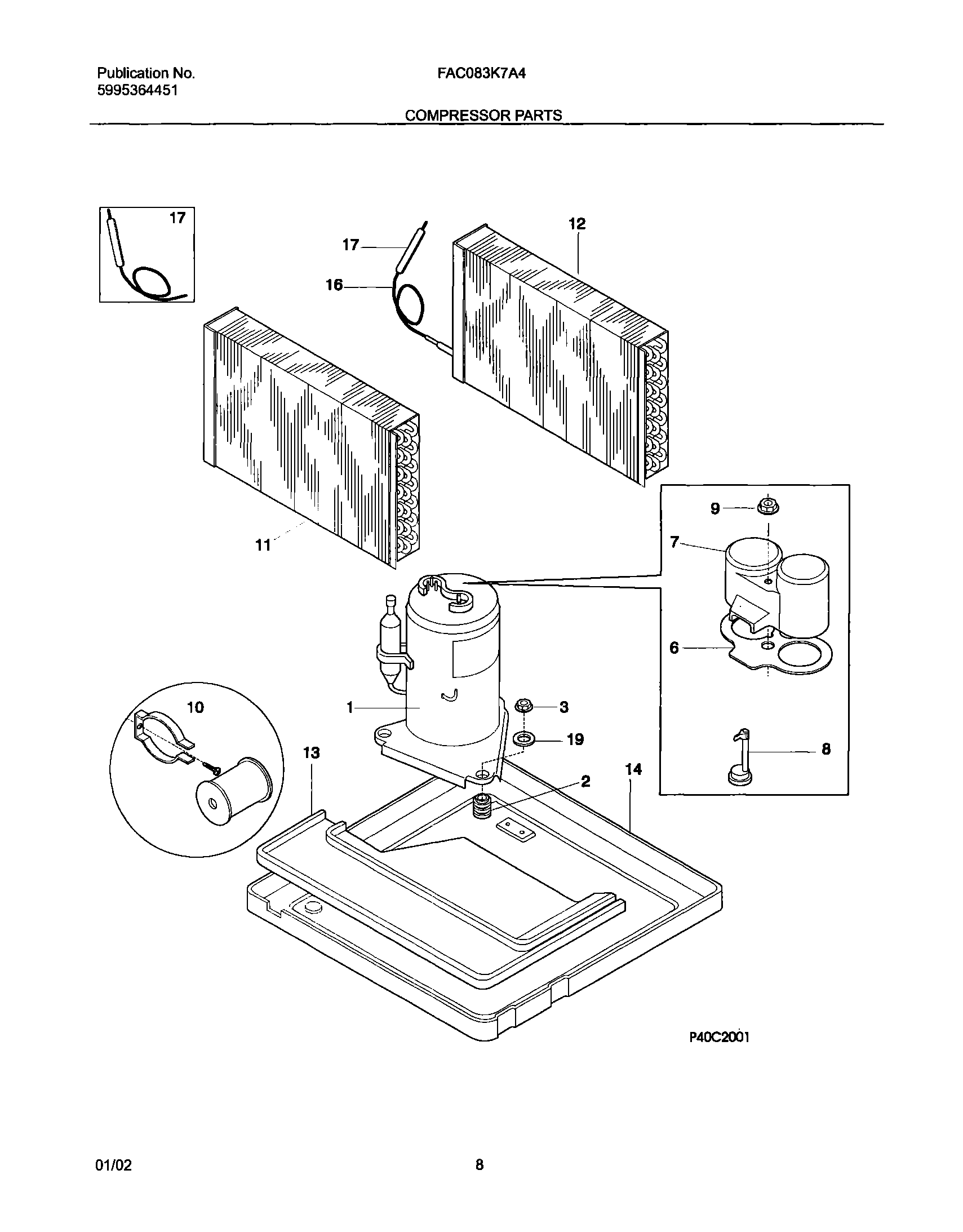

FAC083K7A4 09 – COMPRESSOR PARTS

Written by

Products

Position	Product
NI	WCI 309112501
1	WCI 309616918
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 3201668
7	WCI 5304405245
8	WCI 5304402840
9	WCI 3201670
10	WCI 5303317601
11	Evaporator
12	WCI 5303307226
13	Tray,evap drip
14	Base,compressor mt. ,with studs
16	WCI 5304409280
17	WCI 5304417516
19	WASHER,COMPRESSOR MTG
