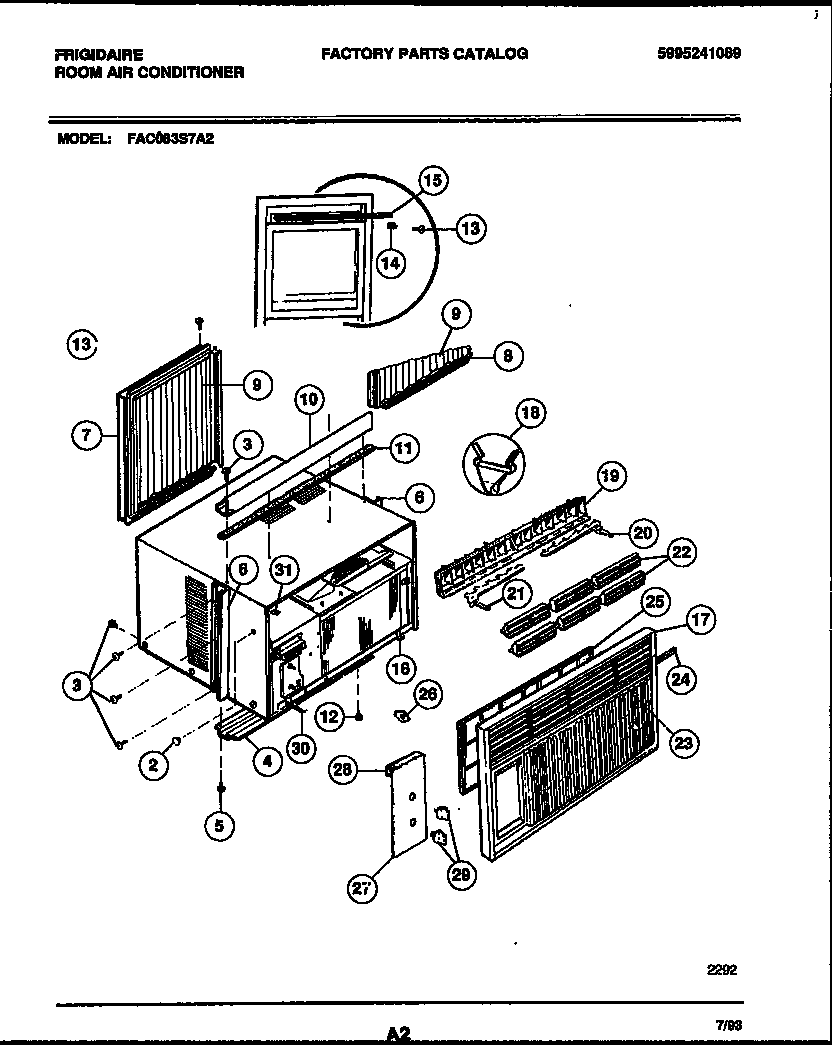

FAC083S7A2 02 – CABINET PARTS

Products

Position	Product
1	WCI 5303270060
2	SCREW
3	134178901 Frigidaire Screw
4	WCI 5303270072
5	SCREW
6	WCI 5303270073
7	WCI 5303282370
8A	WCI 5303282371
9	WCI 5303270075
10	WCI 5303270064
11	WCI 08016226
12	WCI 08016080
13	WCI 5308002974
14	BRACKET
15	5304407729 Frigidaire Air Conditioner Seal
16	WCI 5303001784
17	FRONT-COMPLETE
18	WCI 5303001844
19	VERTICAL LOUVER & LINK ASSY
20	WCI 5303293758
21A	WCI 5303293759
22	WCI 5303300112
23	WCI 5303300113
24	WCI 08007482
25	WCI 3016117
26	INSERT
27	WCI 5303300109
28	SEAL-DIAL PLATE
29	WCI 5303271478
30	SERVICE CORD
31	NUT - FRONT LOCK
