FAC084J7A2 09 – COMPRESSOR PARTS – Aparts

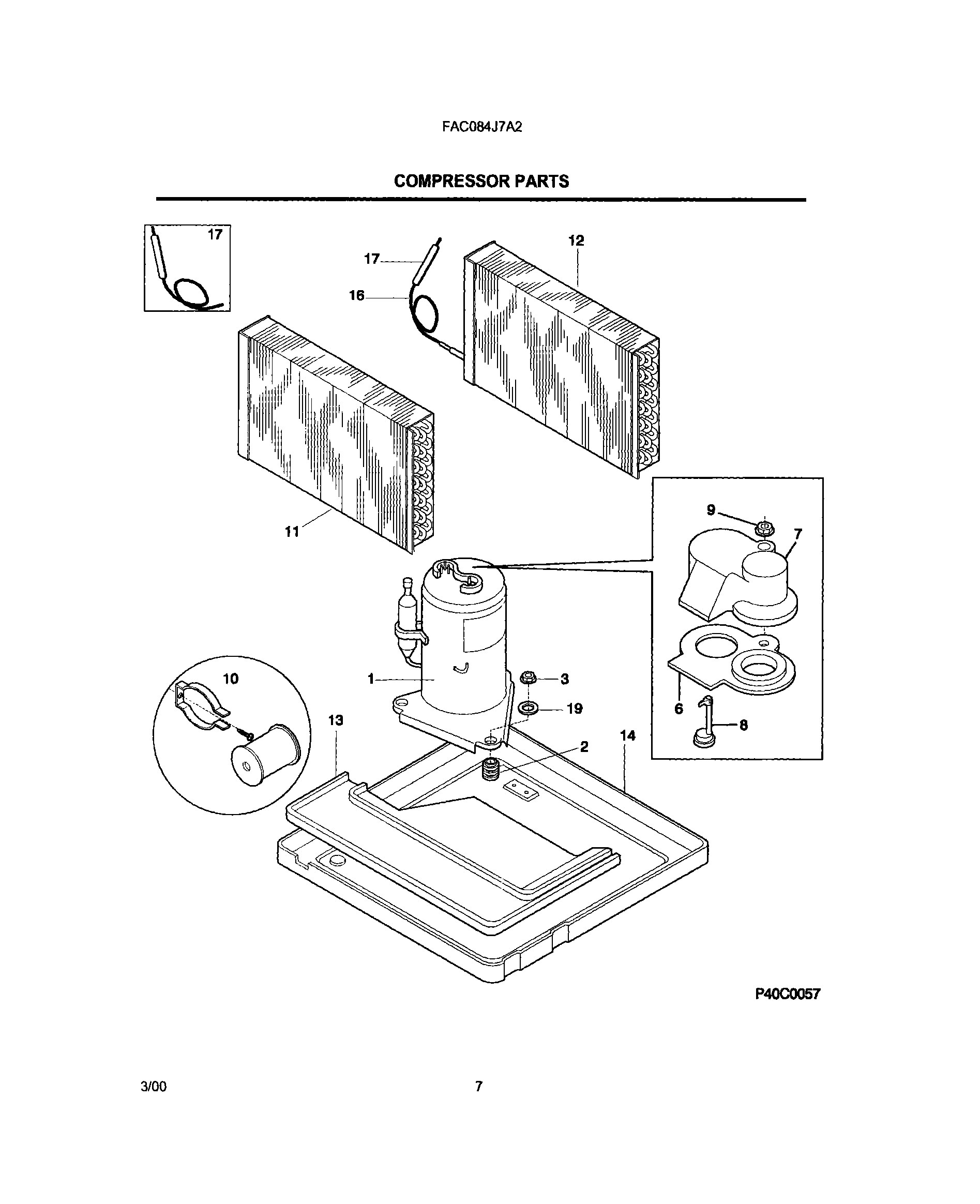

FAC084J7A2 09 – COMPRESSOR PARTS

Products

Position	Product
1	WCI 5304406829
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	GASKET-TERMINAL
7	COVER-TERMINAL
8	WCI 3202920
9	WCI 5303211017
10	WCI 5303317601
11	WCI 309619305
12	WCI 5303303195
13	WCI 5303302849
14	WCI 5304413932
16	CAPILLARY TUBE
19	WASHER,COMPRESSOR MTG
