FAC084K7A1 05 – CONTROL

FAC084K7A1 05 – CONTROL

Written by

in

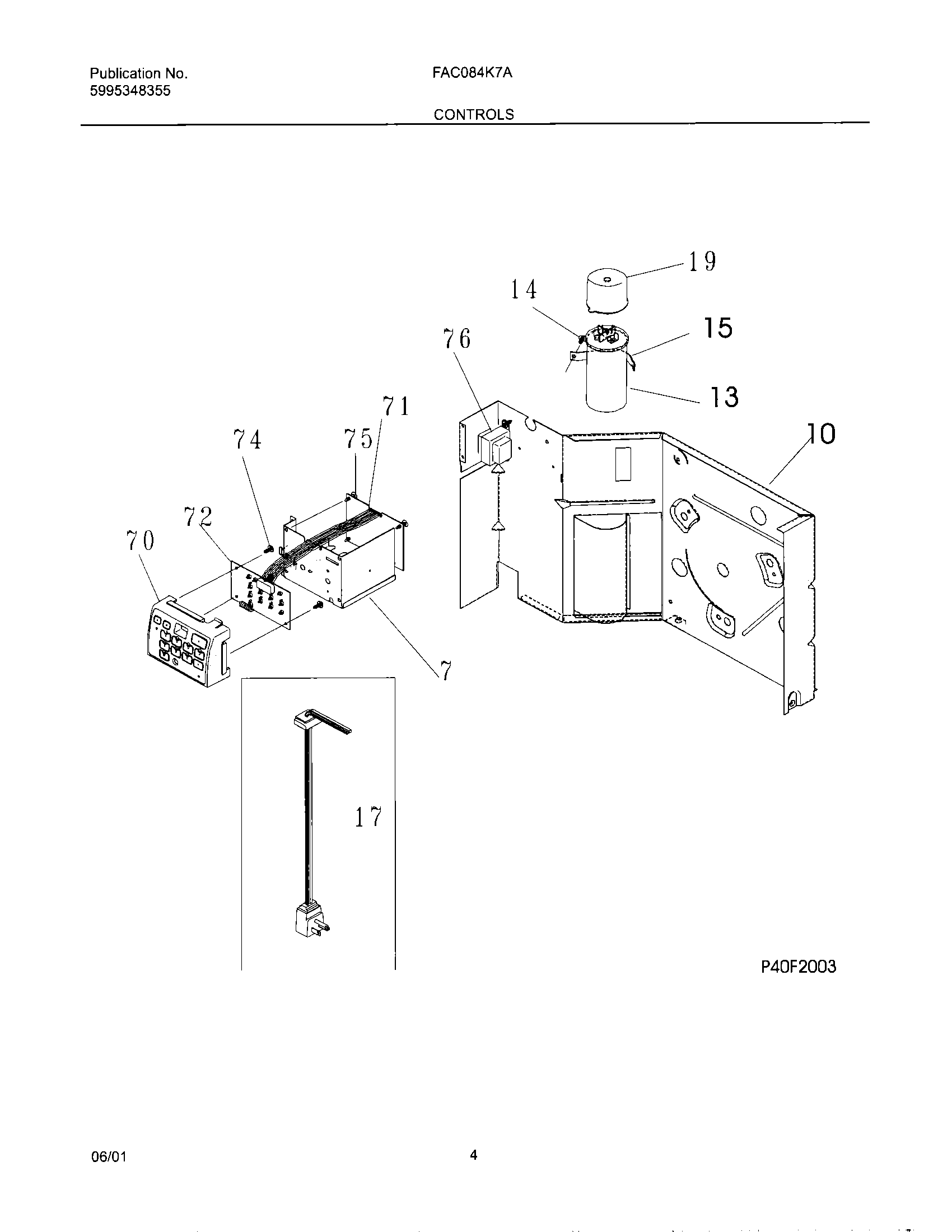

FAC084K7A1 05 – CONTROL

Products

PositionProduct
NIRIBBON PROTECTOR ELEC CNTRL
NIWCI 5304414108
NIWiring diagram
NIWCI 309111201
7Control Box
10WCI 309602404
12THERMISTOR HOLDER ASSY
13WCI 5303303576
14134178901 Frigidaire Screw
15WCI 5303303086
17WCI 309343101
19WCI 5303302855
70Enclosure,elec control mt
71PC Board,power ,w/temp sensor
72WCI 309350402
743201861 Frigidaire Screw
75PC BOARD-SUPPORT HARDWARE
76WCI 309111601
