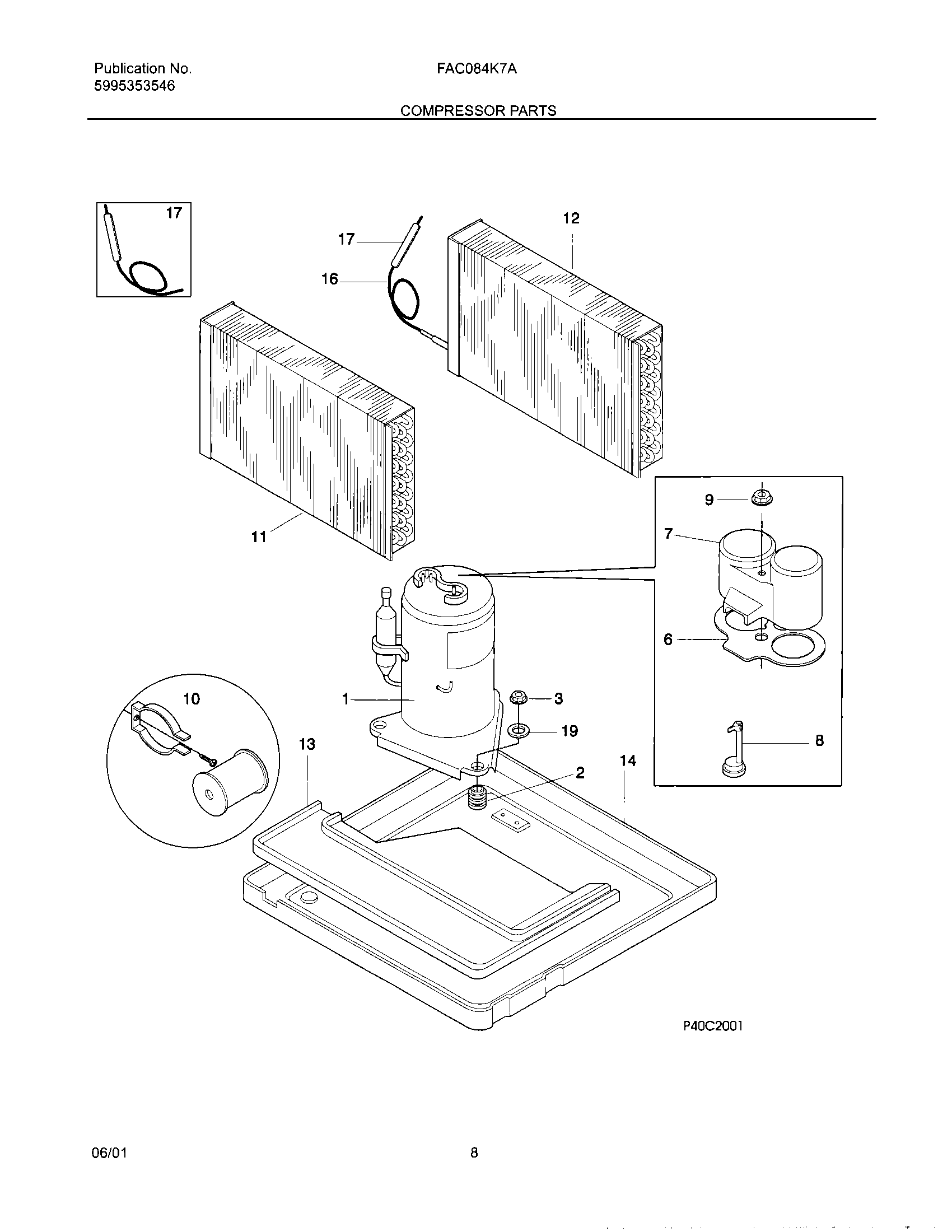

FAC084K7A2 11 – COMPRESSOR

FAC084K7A2 11 – COMPRESSOR

Written by

in

FAC084K7A2 11 – COMPRESSOR

Products

PositionProduct
NIWCI 309112501
1WCI 5304420272
2GROMMET,COMPRESSOR MTG ,(3)
3NUT,COMPRESSOR MTG ,(3)
6WCI 5303291330
7WCI 5304416126
8WCI 5304420271
9WCI 5303294292
10WCI 5303317601
11WCI 309619303
12WCI 5303303195
13WCI 5303302849
14WCI 5304413780
16WCI 5304409280
17WCI 5304417516
19WASHER,COMPRESSOR MTG
