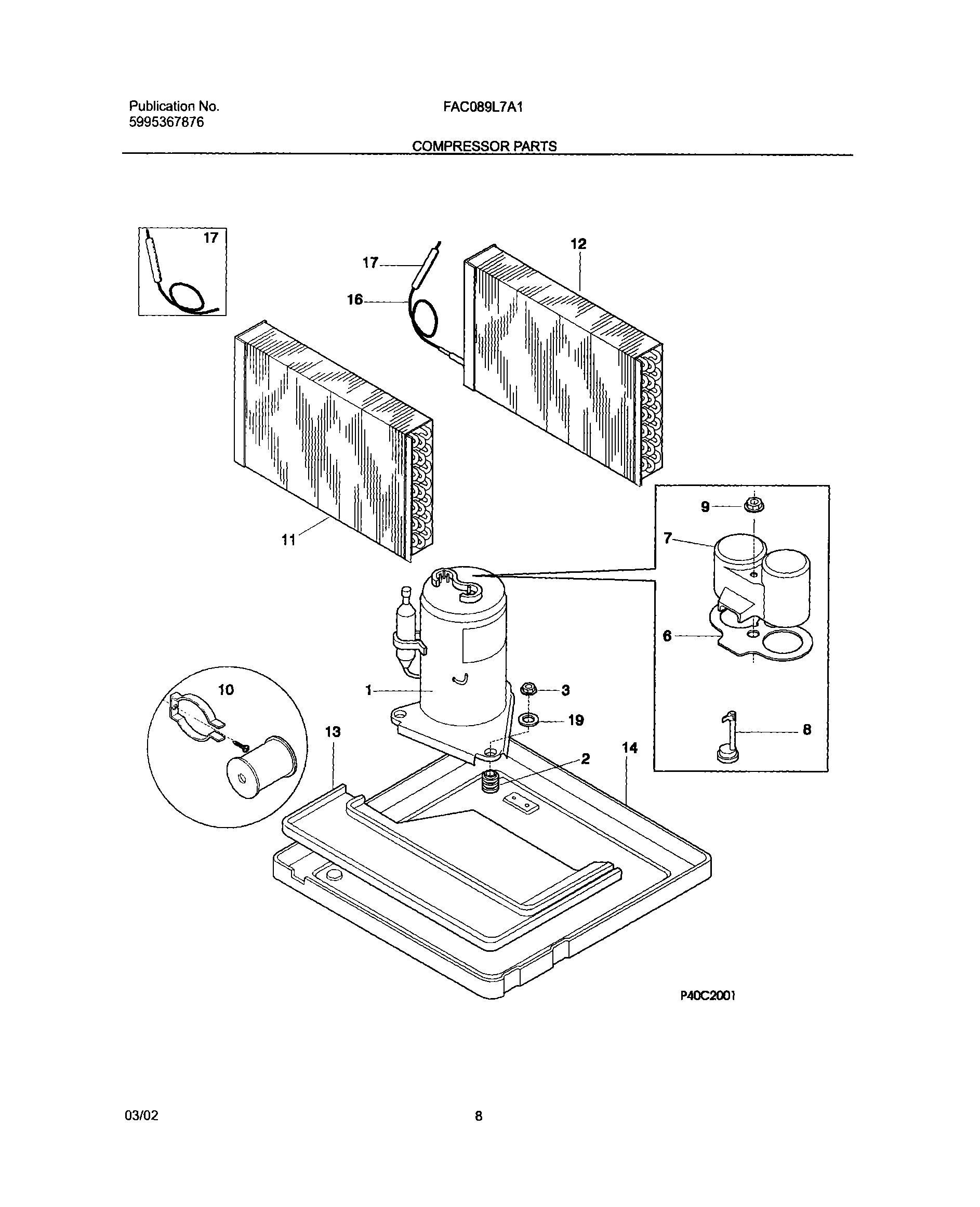

FAC089L7A1 09 – COMPRESSOR PARTS

Written by

Products

Position	Product
NI	WCI 309112501
1	WCI 309616919
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 3201668
7	WCI 5304405245
8	WCI 5303317553
9	WCI 3201670
10	WCI 5303317601
11	Evaporator
12	WCI 5303303197
13	Tray,evap drip
14	Base,compressor mt. ,with studs
16	WCI 5304426332
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
19	WASHER,COMPRESSOR MTG
