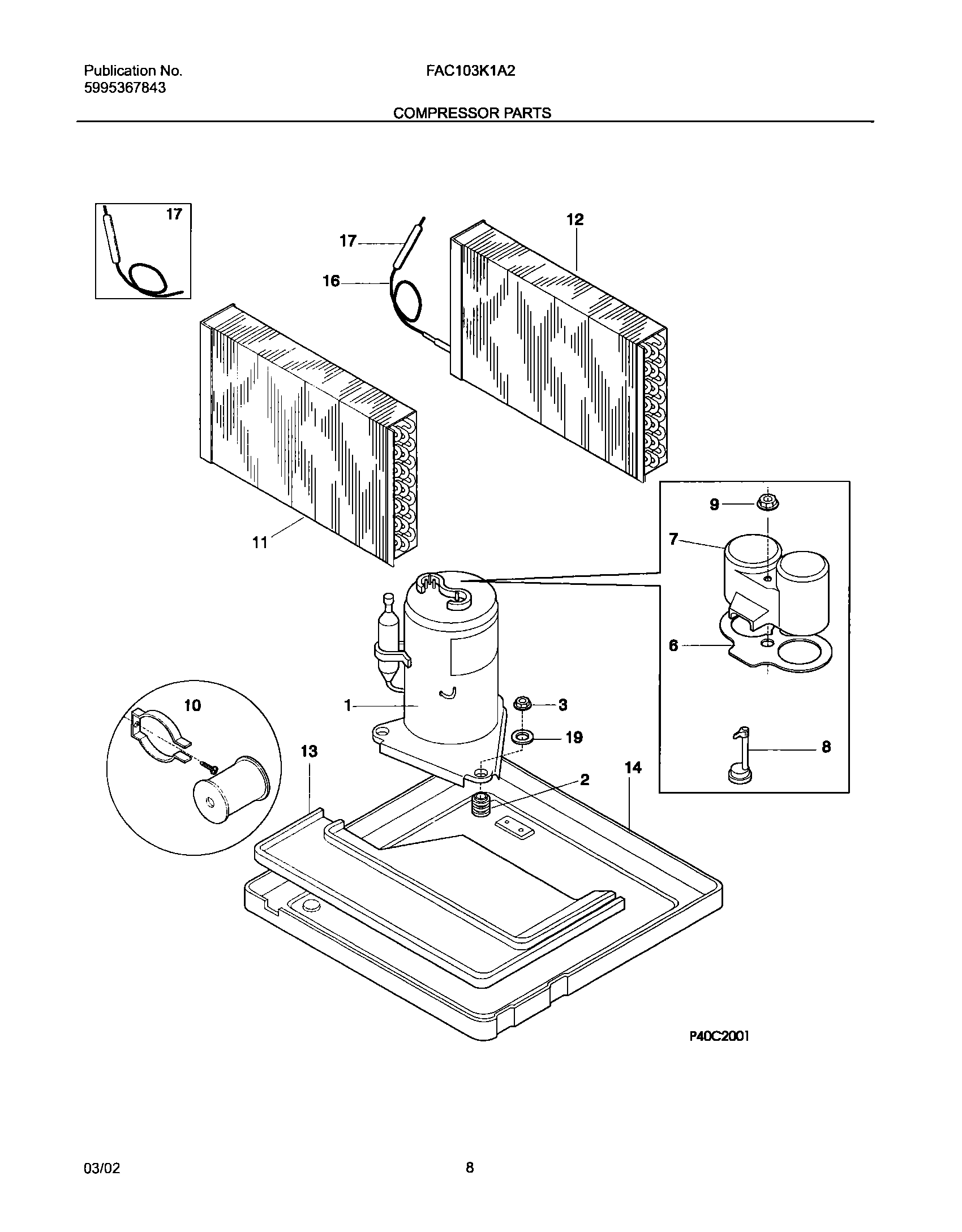

FAC103K1A2 09 – COMPRESSOR PARTS

Products

Position	Product
NI	WCI 309112501
1	WCI 5304426969
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	GASKET-TERMINAL
7	COVER-TERMINAL
8	WCI 5304426968
9	WCI 5303211017
10	WCI 5303317601
11	WCI 309619315
12	WCI 309645405
13	Tray,evap drip
14	Base,compressor mt. ,with studs
16	WCI 5304403237
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
19	WASHER,COMPRESSOR MTG
