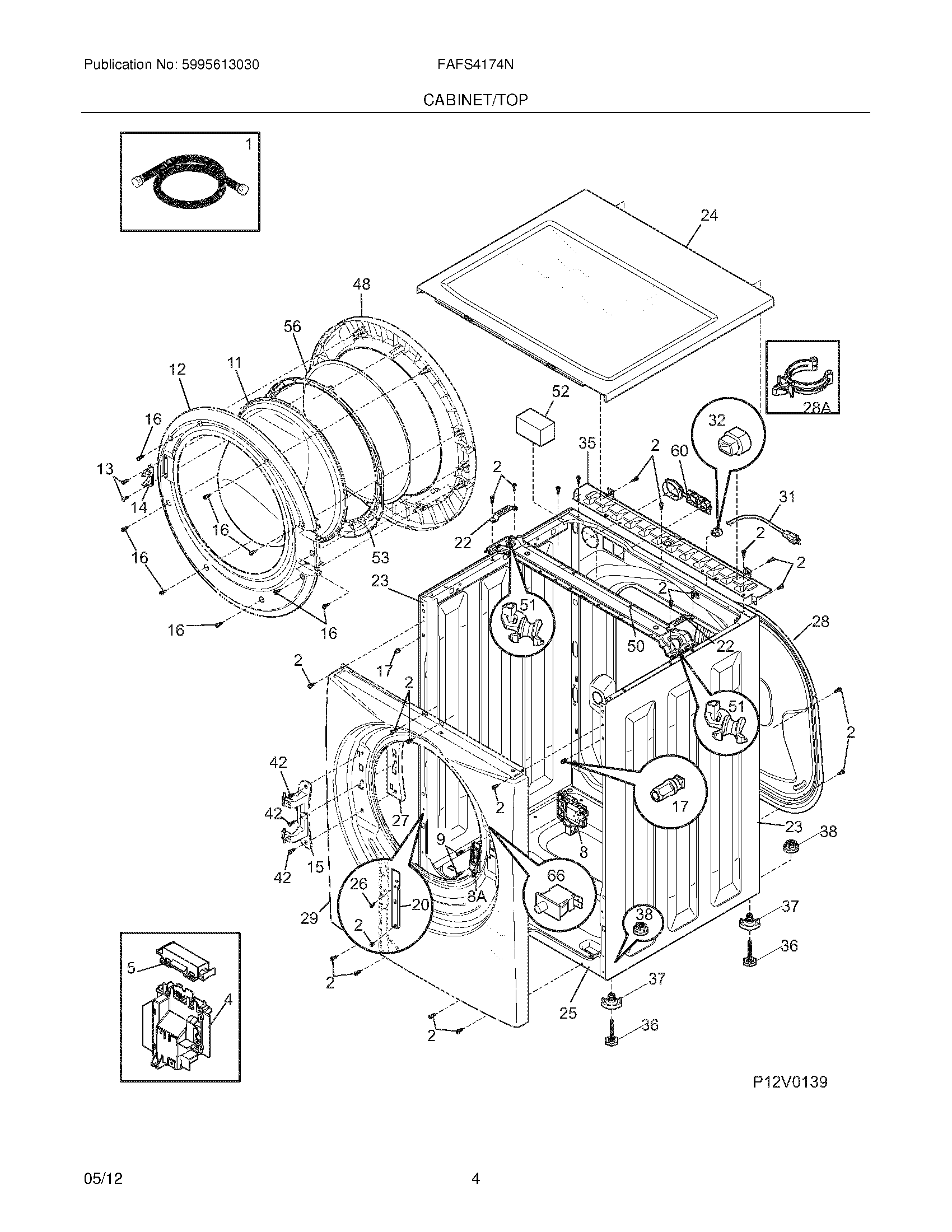

FAFS4174NA0 05 – CABINET/TOP

FAFS4174NA0 05 – CABINET/TOP

Written by

in

FAFS4174NA0 05 – CABINET/TOP

Products

PositionProduct
NI134629400 Frigidaire Screw
NIWCI 134649401
NI134591500 Frigidaire Transport Plug Kit
NIWCI 137247900
NIWCI 134962000
NI134926600 Frigidaire Damper
1Hose,water inlet ,4 ft. ,hose & washer
2131168200 Frigidaire Dryer Screw
4134618213 Frigidaire Washer Control Board
5134649700 Frigidaire Cover
8A137279900 Frigidaire Vent
8DOOR LOCK/SWITCH ASSY
9131302800 Frigidaire Drum Vane Screw
11134366400 Frigidaire Panel
12137280302 Frigidaire Outer Door Frame
13131302901 Frigidaire Screw
14131763302 Frigidaire Washer Door Strike
15WCI 134550800
16131205300 Frigidaire Screw
17134638700 Frigidaire Clip
20WCI 137021610
20WCI 137021600
22134648500 Frigidaire Spring Bracket
23PANEL, SIDE, LEFT/RIGHT, CHROME
24134638525 Frigidaire Panel
25WCI 134646000
26WCI 134521600
27134550900 Frigidaire Hinge Bracket
28A134876501 Frigidaire Clip
28BACK PANEL SERVICE,service
29WCI 137021825
31137011400 Frigidaire Power Cord
325303209428 Frigidaire Serv.Cord Bushing
35WCI 134713100
36134639100 Frigidaire Leveling Leg
37134617600 Frigidaire Bushing
38134639200 Frigidaire Nut
42137380600 Frigidaire Screw – M5 x 0.8
485304506743 Frigidaire Outer Door Panel – Titanium
50WCI 134645600
51134655800 Frigidaire Protector
52131931202 Frigidaire Dampener
53137266700 Frigidaire Ring
56137578120 Frigidaire Glass
60134372000 Frigidaire Grommet
66134813660 Frigidaire Switch
