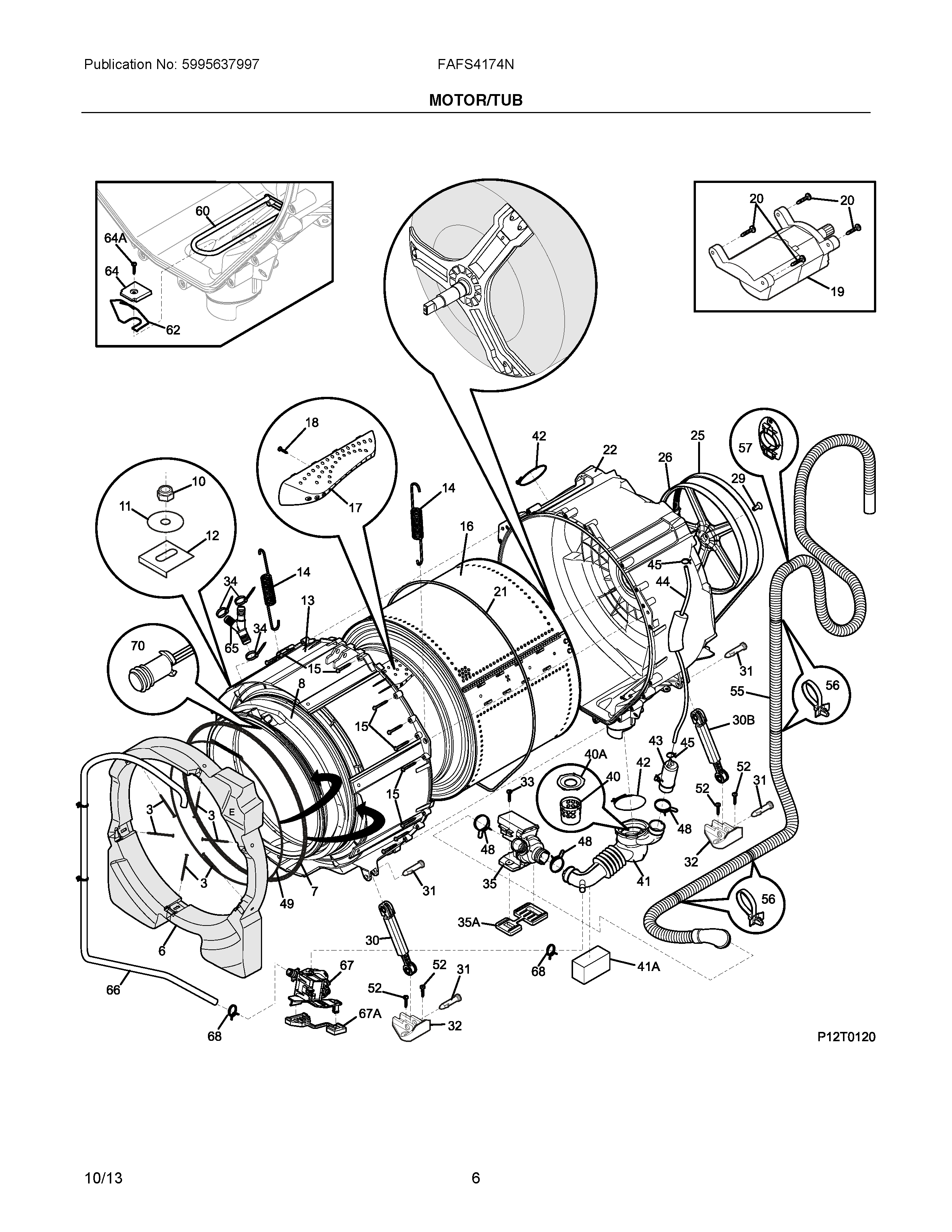

FAFS4174NA1 04 – MOTOR/TUB

FAFS4174NA1 04 – MOTOR/TUB

Written by

in

FAFS4174NA1 04 – MOTOR/TUB

Products

PositionProduct
NIA137110800 Frigidaire Cushion
NIAWCI 137290700
3WCI 131793303
6WCI 134362210
7134365300 Frigidaire Spring
8137566000 Frigidaire Bellows
10Nut,hex ,1/4-20 UNC-2B
11131276900 Frigidaire Washer Spring
12WCI 134430600
13134955100 Frigidaire Shell Assembly
14134957000 Frigidaire Spring Assembly
15131303900 Frigidaire Screw
16Drum Assy,spin basket
17134952702 Frigidaire Vane Assembly
18131302800 Frigidaire Drum Vane Screw
19134638900 Frigidaire Washer Motor
20131303500 Frigidaire Screw
215304520351 Frigidaire Washer O-Ring
22WCI 134956200
25134616700 Frigidaire Belt
26WCI 137317100
29134408400 Frigidaire Screw
30B5304491700 Frigidaire Kit-Shock
305304491701 Frigidaire Shock Kit
31131268300 Frigidaire Leveling Pin
32134363200 Frigidaire Bracket
33134637200 Frigidaire Screw
345304464772 Frigidaire Refrigerator Wire Tie
35A134618100 Frigidaire Pad
35137311900 Frigidaire Washer Pump
36WCI 137322400
37WCI 137322500
385303161300 Frigidaire Strap
40134640200 Frigidaire Filter
40A134640300 Frigidaire Cover
41134639910 Frigidaire Washer Hose
41AWCI 137340800
43WCI 134636800
44137089000 Frigidaire Air Chamber
45137087500 Frigidaire Clamp
48131306234 Frigidaire Clamp Pump
49134527100 Frigidaire Washer Clamp
52131202300 Frigidaire Screw
55137628100 Frigidaire Hose
56137003500 Frigidaire Cable Tie
57134641100 Frigidaire Bracket
60137488301 Frigidaire Heating Element (10
62134642300 Frigidaire Support Assembly
64WCI 134644600
64A5303211311 Frigidaire Refrigerator Screw
65WCI 137289600
66WCI 137297600
67WCI 137283300
67A137297000 Frigidaire Pad Assembly
68134737300 Frigidaire Clamp
70WCI 137526500
