FAFW3801LW4 02 – CONTROL PANEL

FAFW3801LW4 02 – CONTROL PANEL

Written by

in

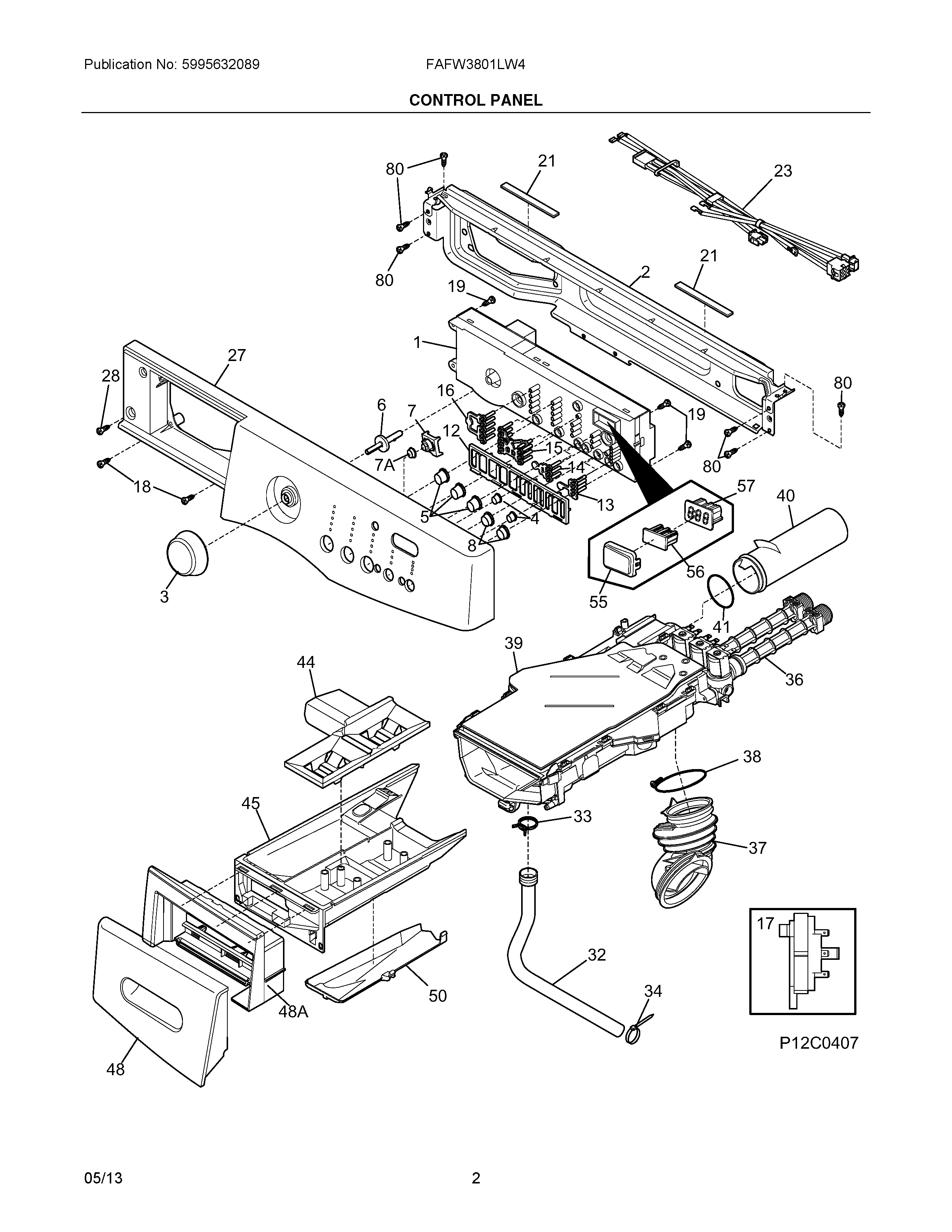

FAFW3801LW4 02 – CONTROL PANEL

Products

PositionProduct
NIA134178901 Frigidaire Screw
NIBWCI 134547600
NIAWCI 134436600
NIA134371300 DISPENSER TO VALVE GASKET
1137006085 Frigidaire Washer Control Board
2134887400 Frigidaire Bracket
3KNOB, CONTROL, WHITE
4PUSH BUTTON, ROUND #1
5PUSH BUTTON, ROUND #3
6WCI 134347700
7Push Button,round ,No.2
8PUSH BUTTON, ROUND #4
12WCI 137320500
13WCI 134557500
14WCI 134557400
15WCI 134552800
16WCI 134600000
17134762000 Frigidaire Pressure Switch
18131302800 Frigidaire Drum Vane Screw
19134402900 Frigidaire Screw
21134407900 Frigidaire Dampener
23DWCI 137214900
23WIRE HARNESS, MAIN
23CWCI 137104600
27Panel,control console
28131205300 Frigidaire Screw
32WCI 134586500
33134737300 Frigidaire Clamp
345304464772 Frigidaire Refrigerator Wire Tie
36134371220 Frigidaire Dispenser Fill Valve
37134372300 Frigidaire Hose
38134372400 Frigidaire Clamp
40WCI 134372100
41134372200 Frigidaire O-Ring
44134370200 Frigidaire Washer Dispenser Drawer Cover
45134370000 Frigidaire Washer Detergent Dispenser Drawer
48WCI 137314410
48A137314510 Frigidaire Drawer Handle Frame Dispenser
50134409320 Frigidaire Dispenser Assembly
55WCI 137320700
56WCI 134557300
57WCI 134503300
80A131168200 Frigidaire Dryer Screw
