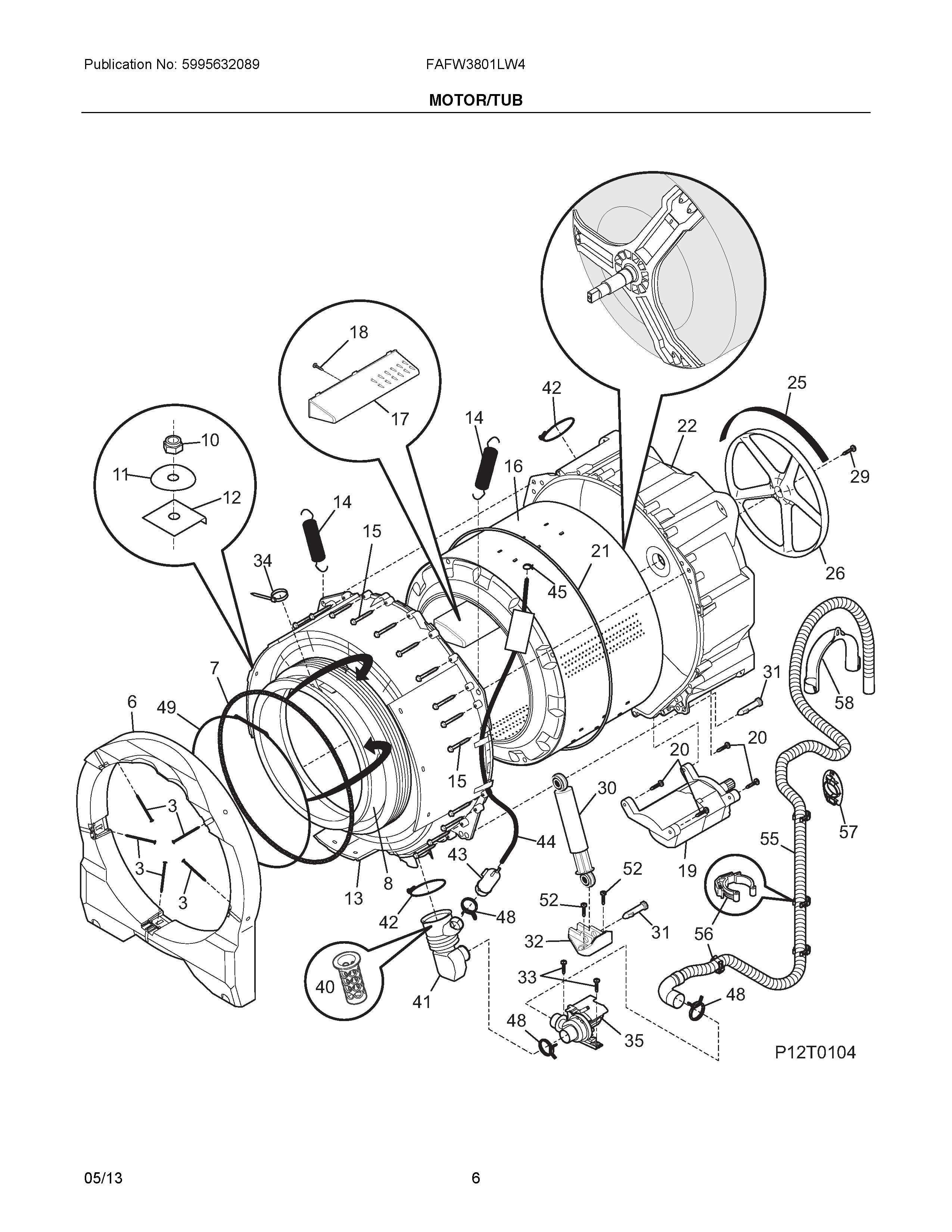

FAFW3801LW4 04 – MOTOR/TUB

Products

Position	Product
3	WCI 131793303
6	WCI 134362200
7	134365300 Frigidaire Spring
8	BELLOWS KIT W/O LIGHT HOLE
10	Nut,hex ,1/4-20 UNC-2B
11	131276900 Frigidaire Washer Spring
12	WCI 134430600
13	134362000 Frigidaire Front Outer Tub
14	WCI 137099300
15	131303900 Frigidaire Screw
16	Drum Assy,spin basket
17	134952702 Frigidaire Vane Assembly
18	131302800 Frigidaire Drum Vane Screw
19	MOTOR, CIM
20	131303500 Frigidaire Screw
21	5304520351 Frigidaire Washer O-Ring
22	134507120 Frigidaire Shell
25	WCI 134051003
26	WCI 137317100
29	134408400 Frigidaire Screw
30A	137320300 Frigidaire Shock Absorber
30	5304485917 Frigidaire Washer Shock Absorber Air Stabilizer
31	131268300 Frigidaire Leveling Pin
32	134363200 Frigidaire Bracket
33	134160900 Frigidaire Screw
34	5304464772 Frigidaire Refrigerator Wire Tie
35	137221600 Frigidaire Washer Drain Pump
40	FILTER, PUMP, 36"
41	134455900 Frigidaire Washer Tub To Pump HOSE
42	134737300 Frigidaire Clamp
43	137089000 Frigidaire Air Chamber
45	137087500 Frigidaire Clamp
48	131306234 Frigidaire Clamp Pump
49	134527100 Frigidaire Washer Clamp
52	131202300 Frigidaire Screw
55	134889600 Frigidaire Drain Hose
56	WCI 134781400
57	134641100 Frigidaire Bracket
58	WCI 137166600
