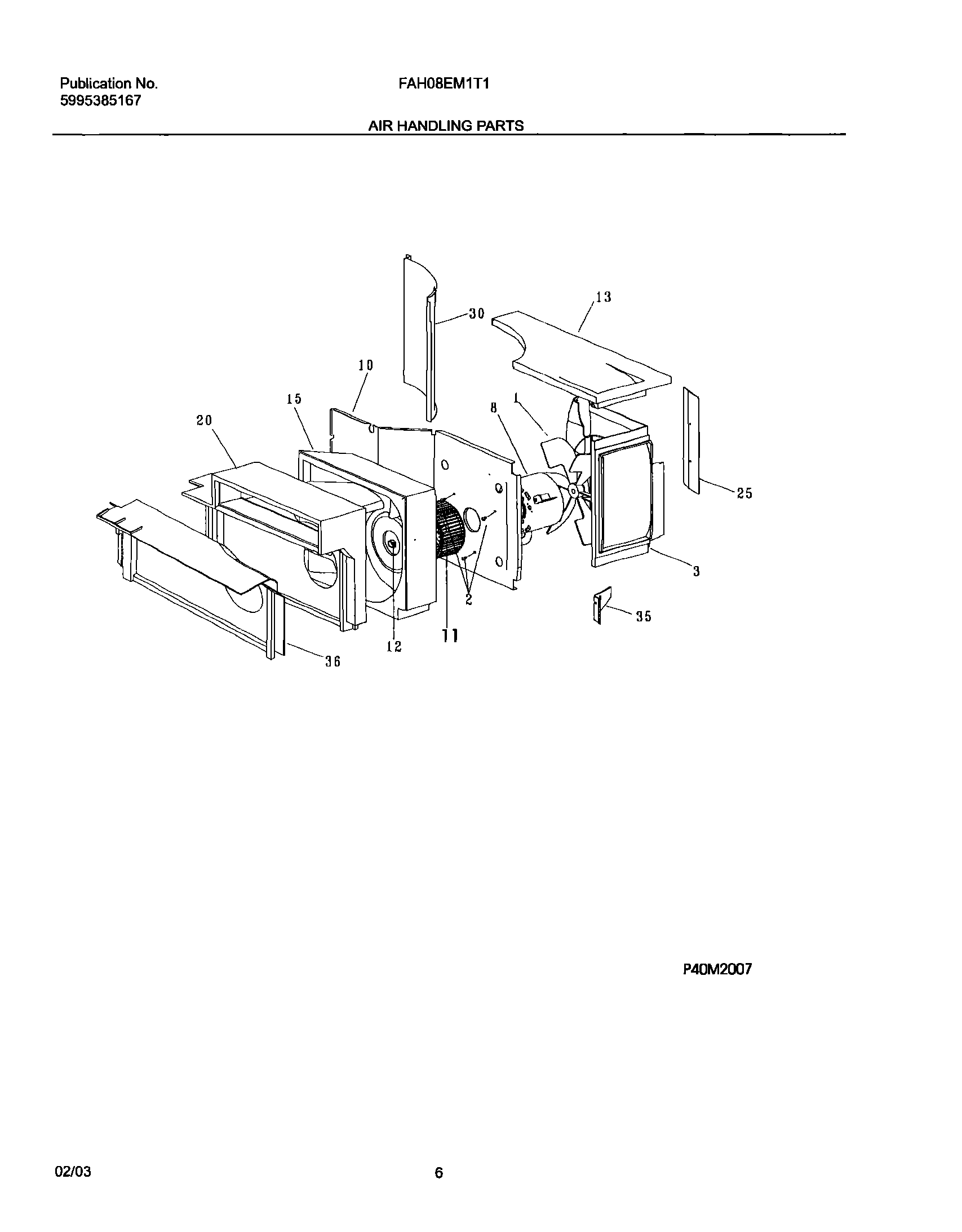

FAH08EM1T1 07 – AIR HANDLING PARTS

Written by

Products

Position	Product
NI	134178901 Frigidaire Screw
NI	WCI 309111201
1	BLADE-FAN ASS`Y
2	131202300 Frigidaire Screw
3	Shroud-condenser
8	WCI 309647503
10	WCI 309627401
11	WCI 309631701
12	WCI 5303012110
13	Cover,condenser ,top
15	Scroll
20	Scroll plate
25	WCI 309335201
30	Partition,condenser ,galv-steel
35	WCI 309335001
36	Shield,elec. heater ,vertical
