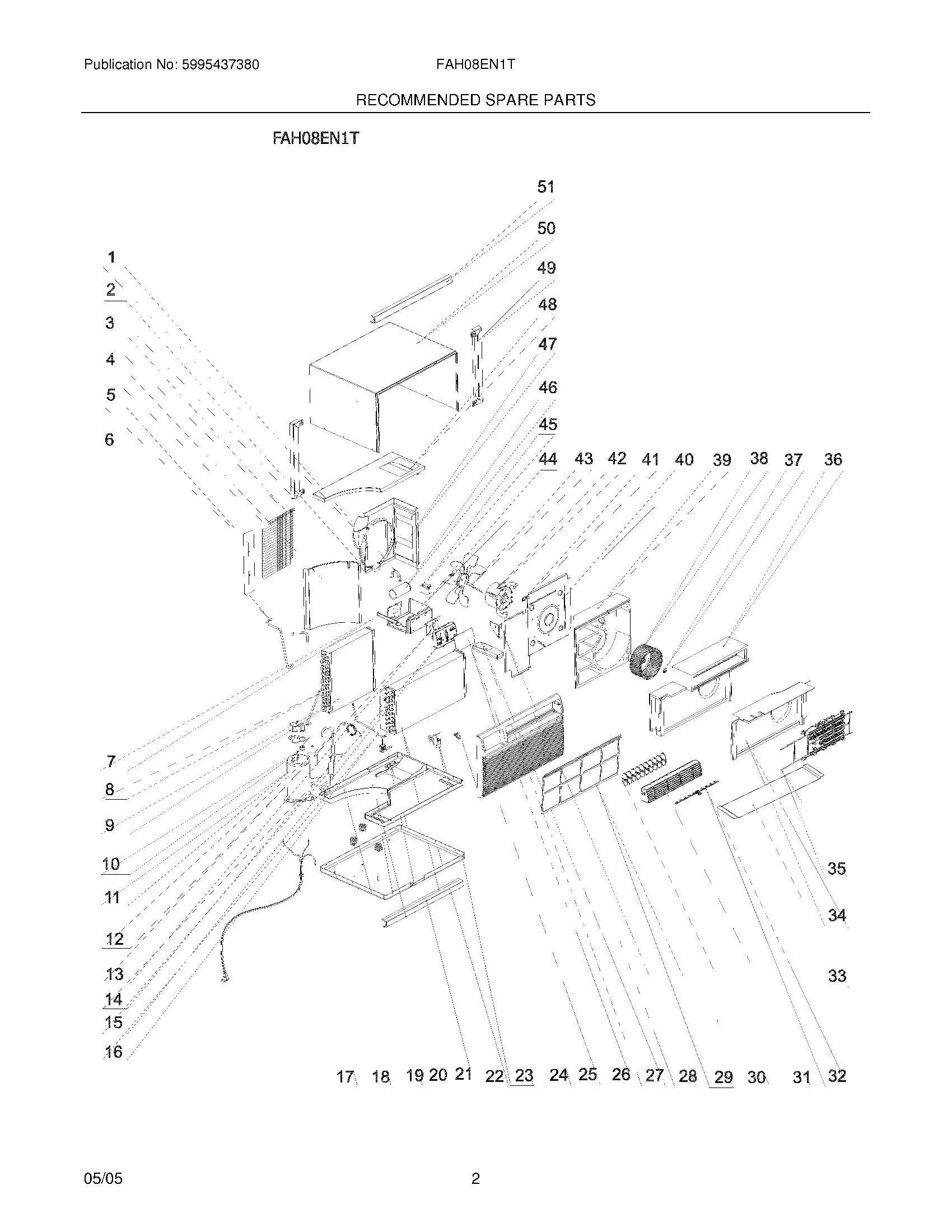

FAH08EN1T 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	STRAP – CAPACITOR
2	WCI 309201002
3	WCI 309636101
4	Partition,condenser ,galv-steel
5	WCI 309335201
6	WCI 309202101
7	WCI 309203101
8	Tube-process,condenser
9	WCI 309632303
10	WCI 309205101
11	WCI 309260301
12	WCI 309372301
13	WCI 309201301
14	WCI 309202201
15	WCI 309200201
16	WCI 309337001
17No.	Power Cord,LCDI-type A ,14 AWG ,115 V ,with test/reset
17	WCI 309343125
18	WCI 309632007
19	WCI 309628704
21	WCI 309363601
22	WCI 309641901
23	WCI 5308017123
24	WCI 309205001
25	WCI 309200101
26	WCI 309201402
27	WCI 309342611
28	WCI 309335001
29	WCI 309628204
30	WCI 309628104
31	WCI 309628004
32	WCI 309324004
33	Shield,heat ,20.94 L ,base
34	Shield,elec. heater ,vertical
35	Heater,1250 W ,115 V
36	Scroll plate
37	WCI 309112101
38	WCI 309631701
39	Scroll
40	WCI 309627401
41	WCI 309111201
42	WCI 309647503
43	BLADE-FAN ASS`Y
44	WCI 309200301
45	WCI 309201702
46	WCI 5304426336
47	Shroud-condenser
48	Cover,condenser ,top
49	WCI 309628603
50	WCI 309627504
51	WCI 309628604
