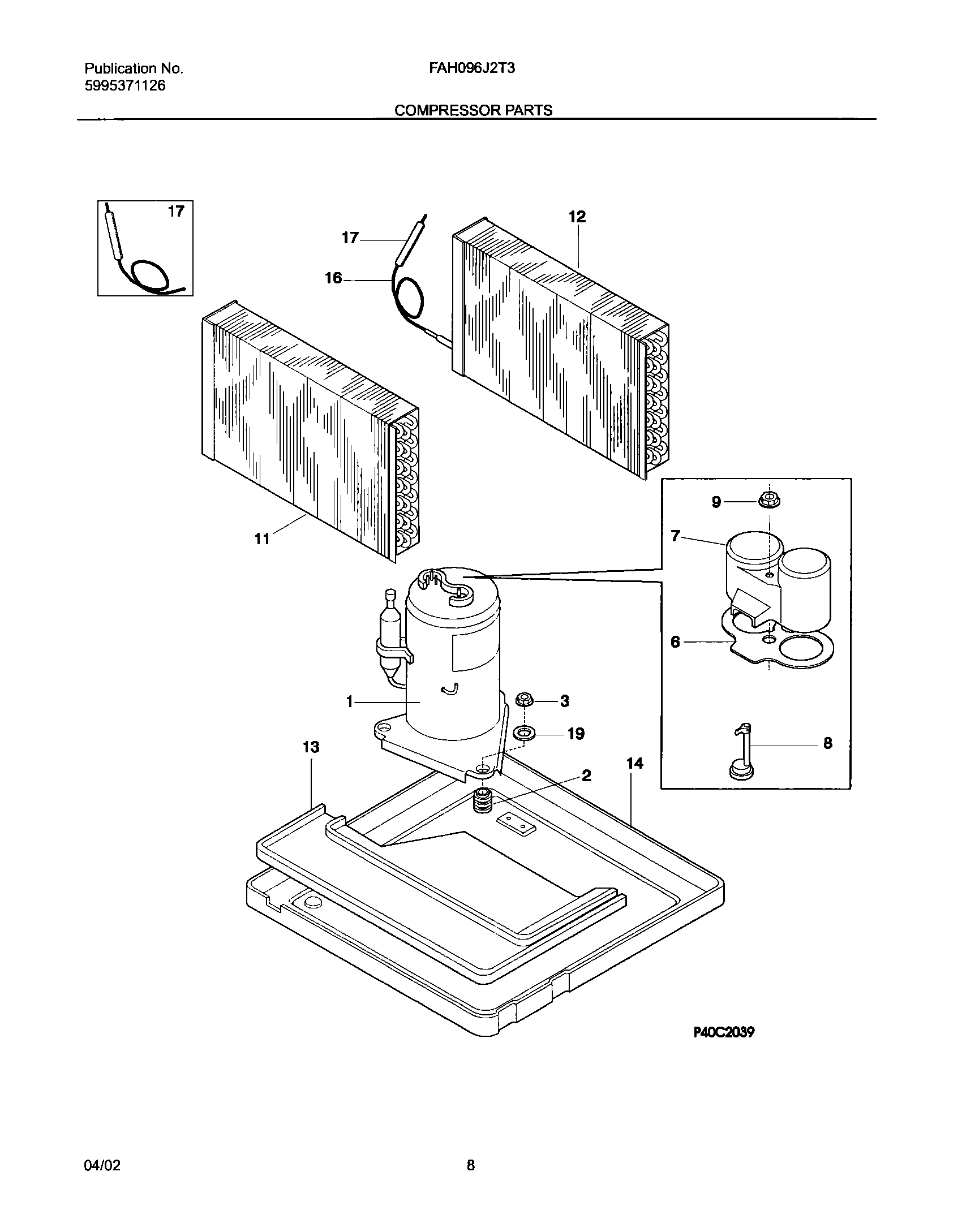

FAH096J2T3 09 – COMPRESSOR PARTS

Written by

Products

Position	Product
NI	WCI 5303290357
NI	WCI 309112501
1	WCI 5304427233
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	GASKET-TERMINAL
7	COVER-TERMINAL
8	WCI 5304427232
9	WCI 5303211017
11	WCI 309632303
12	WCI 309641901
13	WCI 309628705
14	WCI 309632004
16	CAPILLARY TUBE
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
19	WASHER,COMPRESSOR MTG
