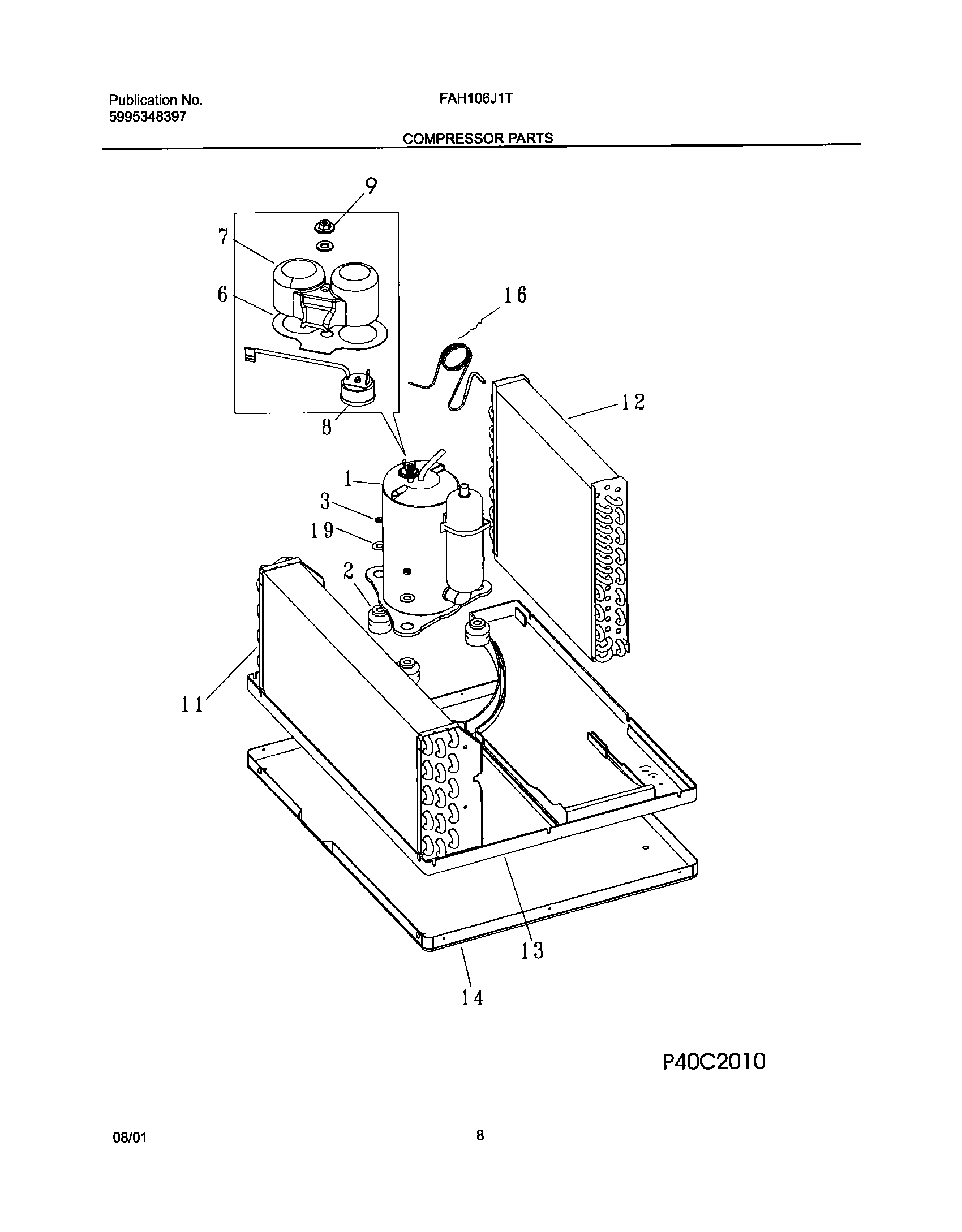

FAH106J1T2 09 – COMPRESSOR PARTS

Products

Position	Product
NI	WASHER,COMPRESSOR MTG
1	WCI 5304419112
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	GASKET-TERMINAL
7	COVER-TERMINAL
8	WCI 5303295567
9	WCI 5303211017
11	WCI 309632307
12	+COND ASSY-18.5NSL 3R/15FPI
13	WCI 309628705
14	WCI 309632005
16	CAPILLARY TUBE,CUT-TO-SIZE
19	WCI 309112501
