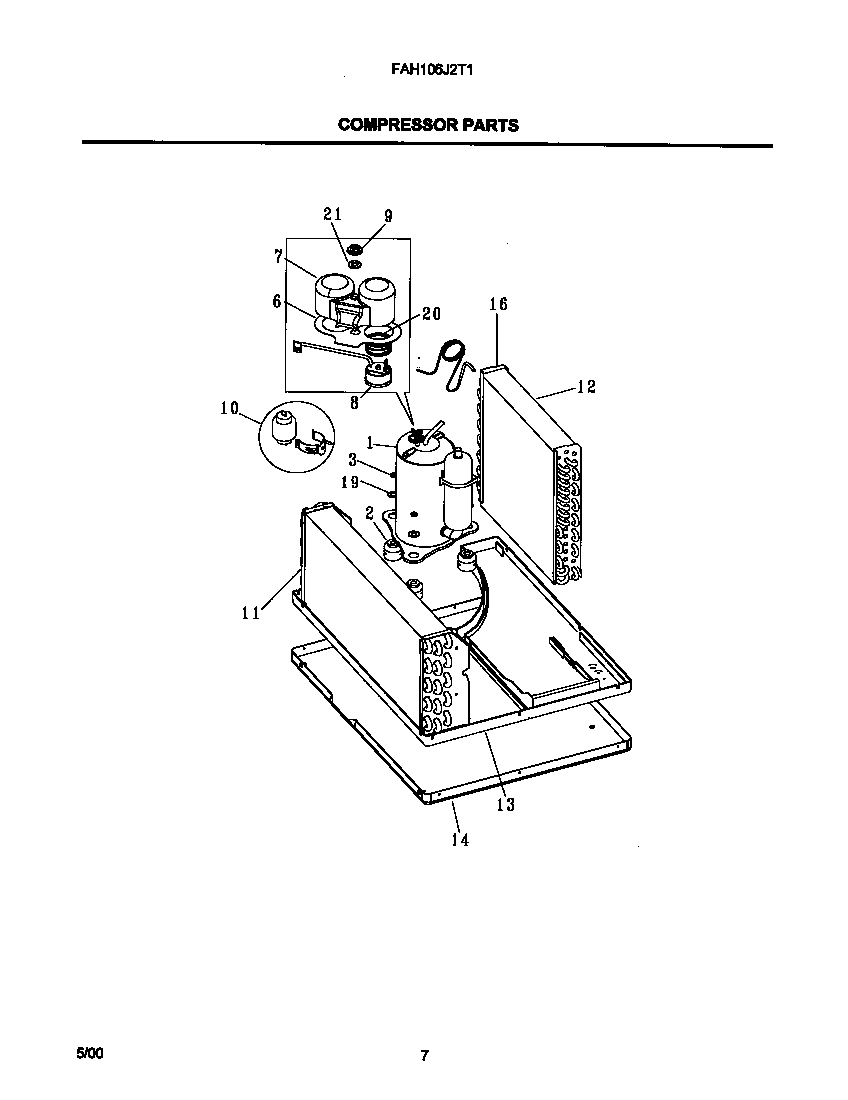

FAH106J2T1 05 – COMPRESSOR PARTS

Written by

Products

Position	Product
1	WCI 5304408771
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 5303002035
7	COVER-TERMINAL
7	COVER-TERMINAL
8	WCI 5303317554
9	WCI 5303301734
11	WCI 309632301
12	+COND ASSY-18.5NSL 3R/15FPI
13	WCI 309628703
14	Base/stud assy
16	Capillary Tube,45 inch long ,cut to length
19	WASHER,COMPRESSOR MTG
20	SPRING-OVERLOAD
21	WCI 5303295516
