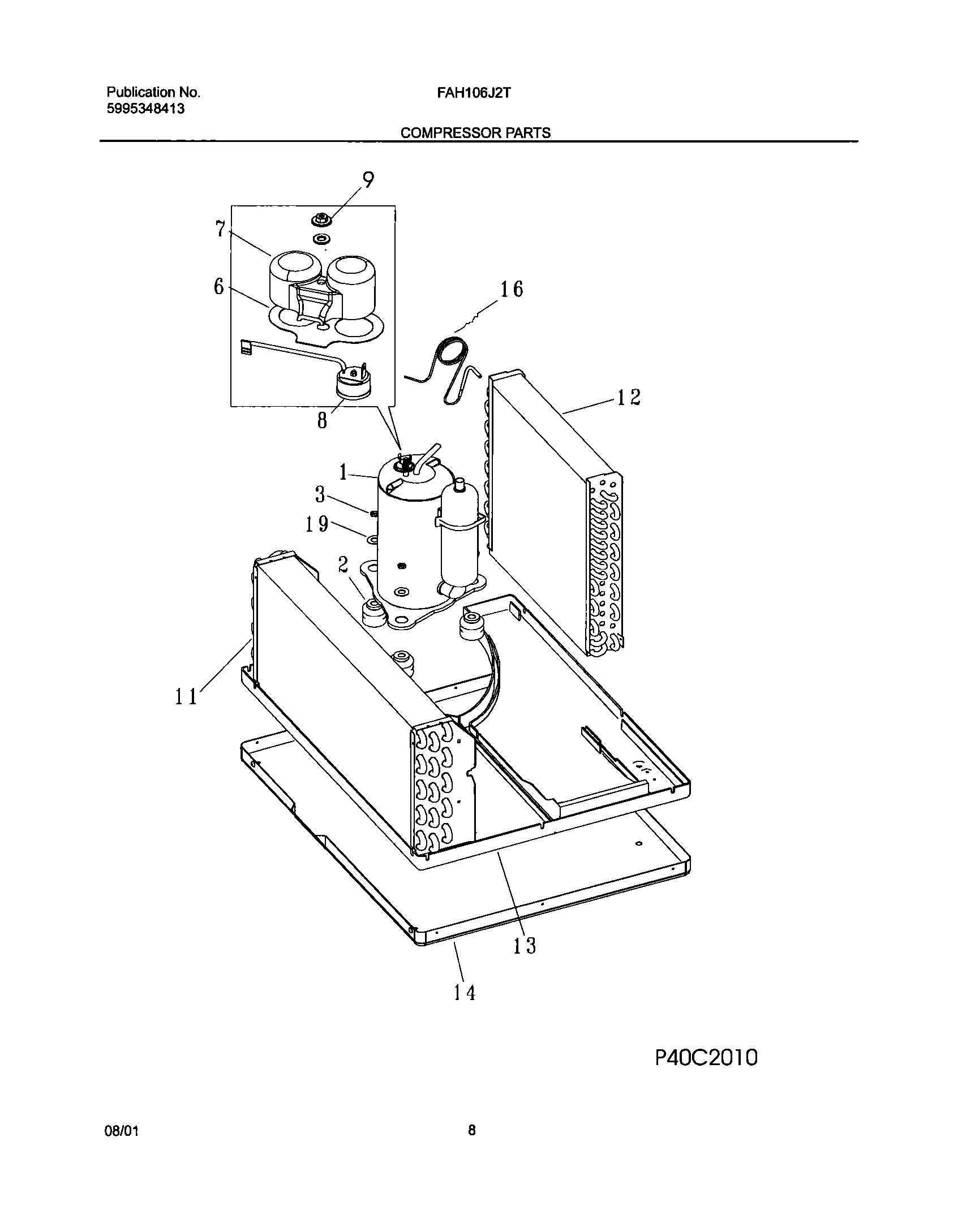

FAH106J2T2 09 – COMPRESSOR PARTS

Written by

Products

Position	Product
NI	WASHER,COMPRESSOR MTG
NI	WCI 5303293809
1	WCI 309603108
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 5303291330
7	WCI 5304416126
8	WCI 5304419130
9	WCI 5303294292
11	WCI 309632307
12	+COND ASSY-18.5NSL 3R/15FPI
13	WCI 309628705
14	Base/stud assy
16	Capillary Tube,45 inch long ,cut to length
19	WCI 309112501
