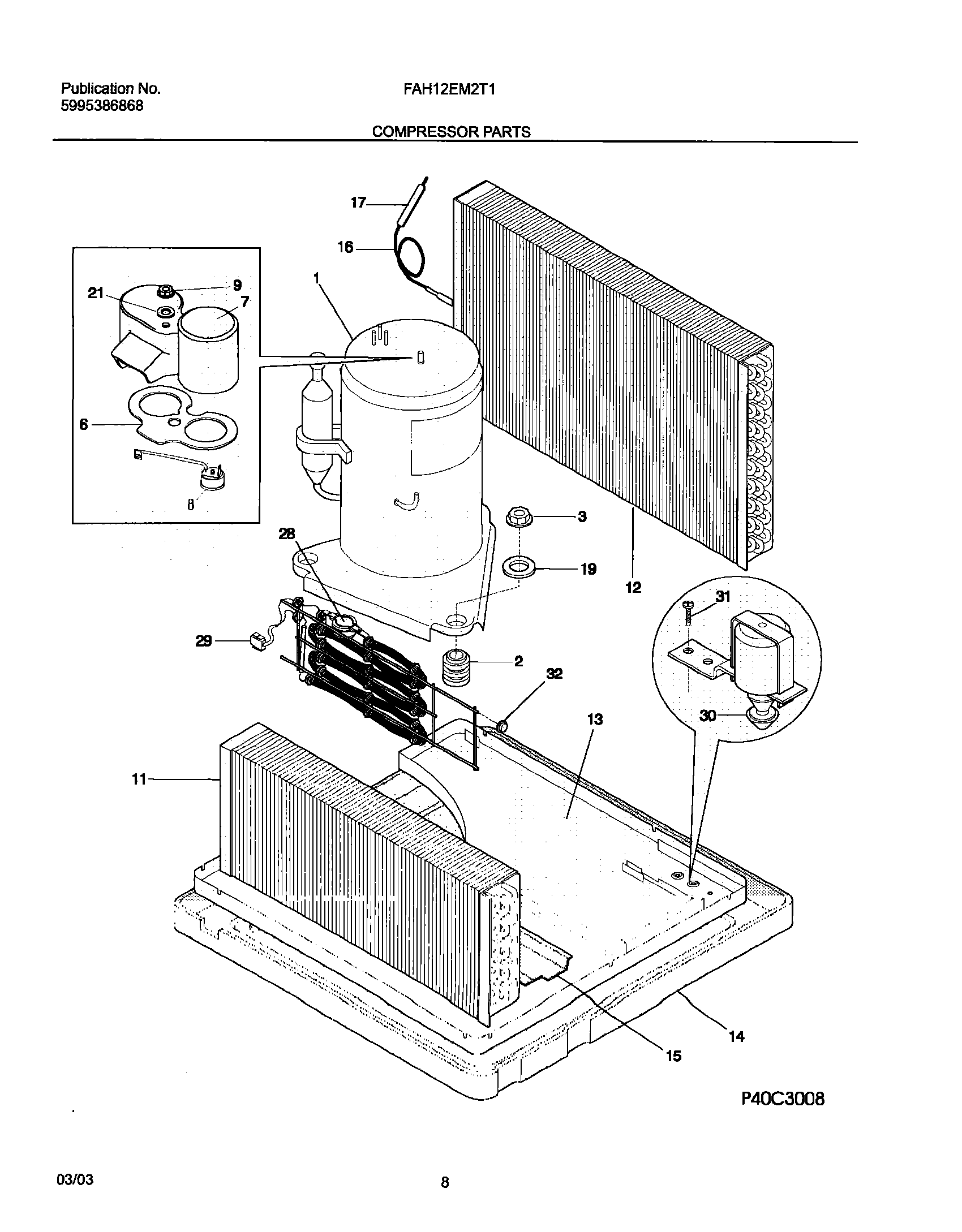

FAH12EM2T1 09 – COMPRESSOR PARTS

Products

Position	Product
1	WCI 309603121
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 5304431275
7	WCI 5304416126
8	WCI 5304430634
9	WCI 5303294292
11	WCI 309632403
12	WCI 309632507
13	WCI 309628704
14	WCI 309632006
15	Shield,heat ,20.94 L ,base
16	Capillary Tube,45 inch long ,cut to length
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
19	WCI 309112501
21	WCI 5303293809
28	+HEATER ASSY-18.5 230V/3450W
29	+HARNESS-WIR HTR 18.5 12AWG
30	WCI 309363601
31	134178901 Frigidaire Screw
32	NUT-HEATER
