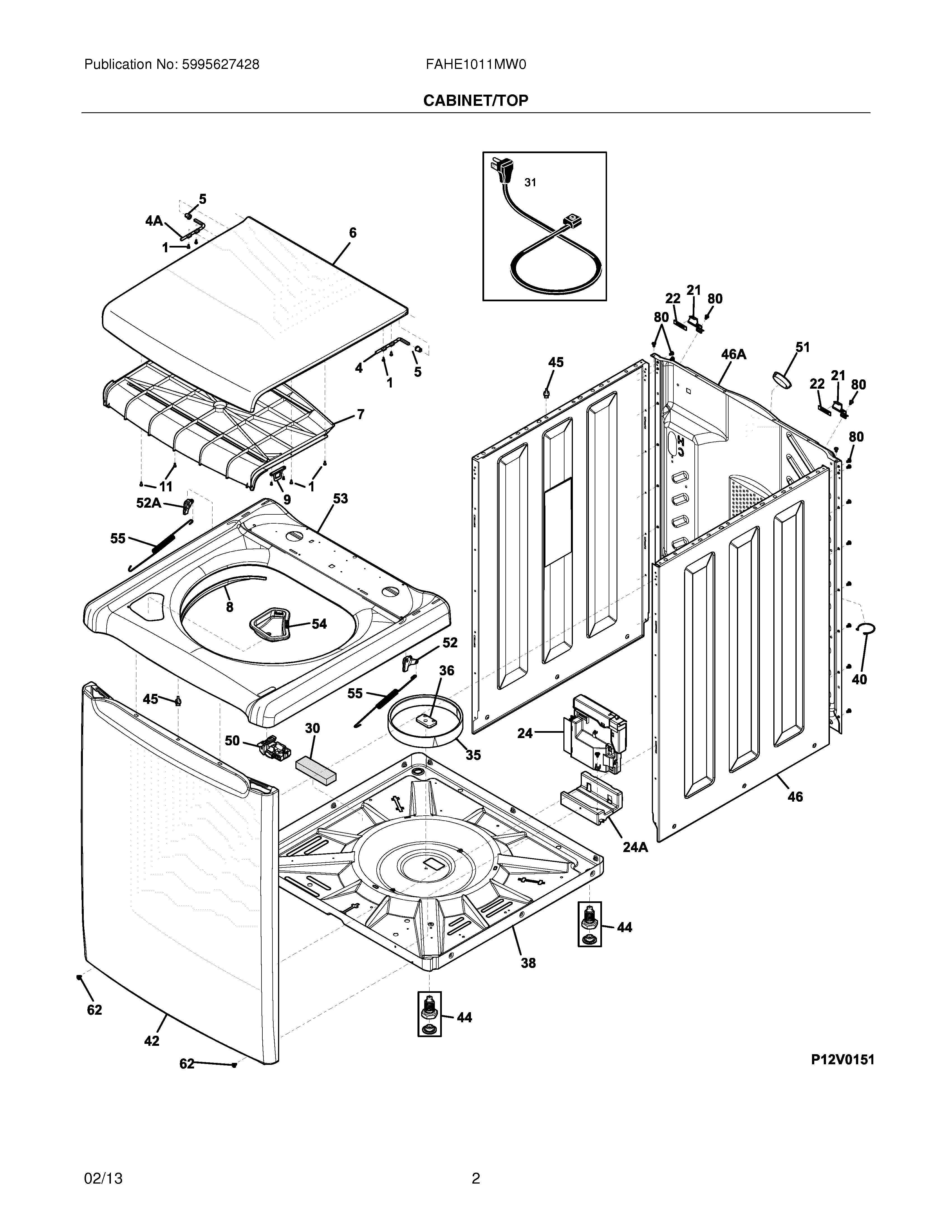

FAHE1011MW0 03 – CABINET/TOP

FAHE1011MW0 03 – CABINET/TOP

Written by

in

FAHE1011MW0 03 – CABINET/TOP

Products

PositionProduct
1134203900 Frigidaire Scr 6-32X.337 Pph D
4WCI 137454800
4AWCI 137454900
5WCI 137456300
6WCI 137469510
7WCI 137308210
8WCI 137514801
9WCI 137512000
113204368 Frigidaire Screw-Strike
21WCI 137278500
22WCI 137331300
24A131168200 Frigidaire Dryer Screw
24AWCI 137469200
24137469113NH Frigidaire Washer Motor Control Board
30WCI 131663500
315304505407 Frigidaire Cord
315303209428 Frigidaire Serv.Cord Bushing
35SNUBBER RING
36SHIPPING BLOCK
38WCI 137493201
405303309503 Frigidaire Clip
40134261300 Frigidaire Clip
42WCI 137363110
44134548800 Frigidaire Washer Leg Levelling
45137362600 Frigidaire Pin
46AWCI 137273201
46A131205500 Frigidaire Screw
46WCI 137272610
50LID LOCK
51131453000 Frigidaire Bushing
52WCI 137532911
52AWCI 137532901
53WCI 137510011
54WCI 137278848
55137534000 Frigidaire Washer Lid Spring
62131302800 Frigidaire Drum Vane Screw
