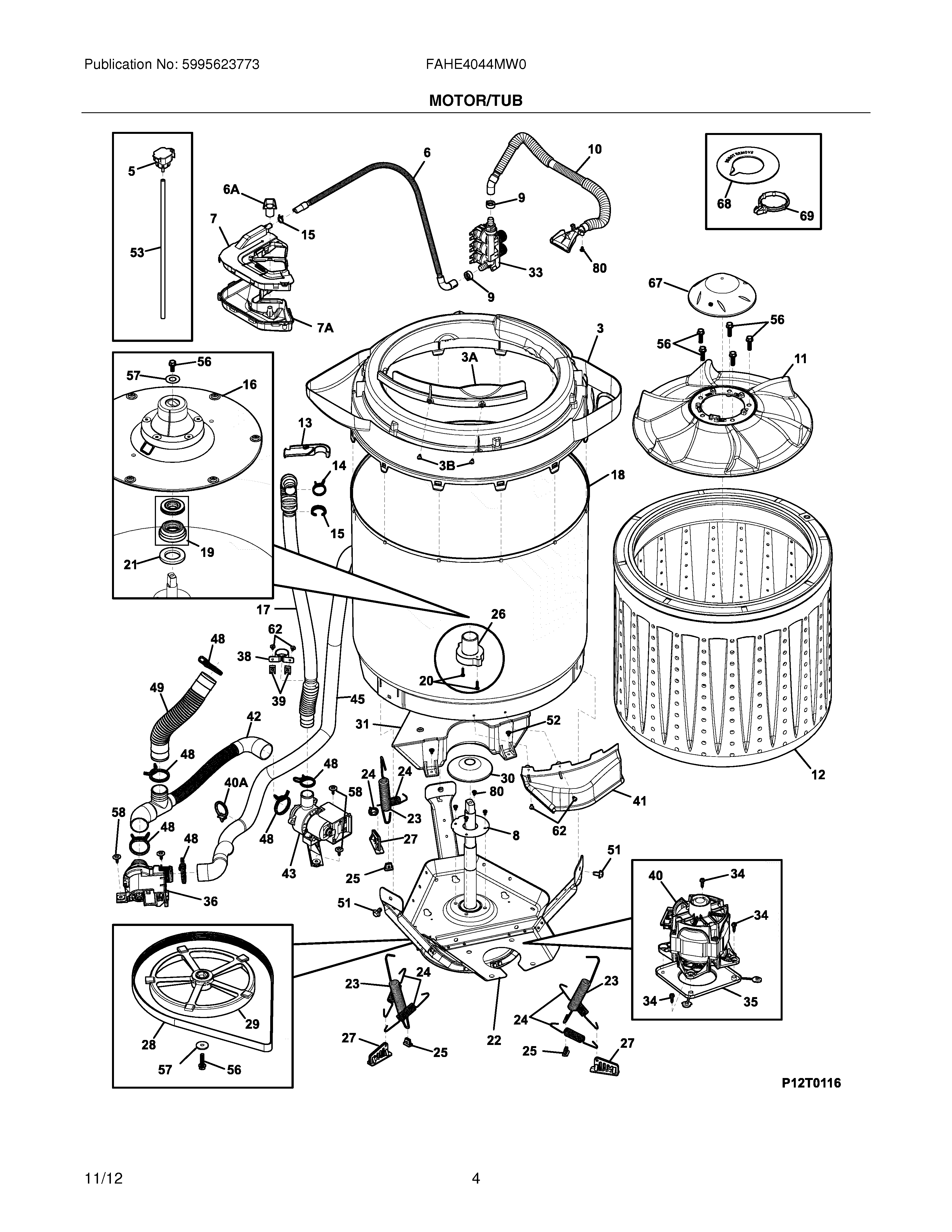

FAHE4044MW0 05 – MOTOR/TUBadmin2025-04-26T12:45:23+00:00FAHE4044MW0 05 – MOTOR/TUB
Products
| Position | Product |
|---|
| 3 | COVER, SPLASH TUB, RECIRCULATING |
| 3A | WCI 137419200 |
| 3 | 131901400 Frigidaire Seal |
| 5 | 137055800 Frigidaire Pressure Sensor |
| 6 | HOSE, DISPENSER OUT |
| 6A | CAP, SIPHON DISP |
| 7A | CUP, DISPENSER, SOFT |
| 7 | COVER, DISPENSER, SOFT |
| 8 | WCI 137363400 |
| 9 | 5304488479 Frigidaire Washer Hose Clamp |
| 10 | 137205600 Frigidaire Hose |
| 11 | WCI 137494000 |
| 12 | TUB, SPIN, H+ W/O LINT FIL |
| 13 | BRACKET, ROUTING, RECIRC HOSE |
| 14 | CLAMP, HOSE |
| 15 | 5304464772 Frigidaire Refrigerator Wire Tie |
| 16 | TRUNNION, LARGE |
| 17 | 137364200 Frigidaire Hose |
| 18 | TUB, SPLASH, AIR DOME/BEARNG |
| 19 | WCI 137547700 |
| 20 | 3205150 Frigidaire Tub Bearing Screw |
| 21 | WCI 137272000 |
| 22 | WCI 137513900 |
| 23 | WCI 137497110 |
| 24 | WCI 137532600 |
| 25 | WCI 137507100 |
| 26 | WCI 137466100 |
| 27 | WCI 137491600 |
| 28 | 137051400 Frigidaire Belt Assembly |
| 29 | 137489000 Frigidaire Drive Pulley |
| 30 | WCI 137049800 |
| 31 | WCI 137466600 |
| 33 | 137465100 Frigidaire Valve-3 Coil |
| 34 | WCI 137470600 |
| 35 | WCI 137510300 |
| 36 | 137221600 Frigidaire Washer Drain Pump |
| 38 | RESTRAINT, HOSE, LOWER |
| 39 | NUT, SPEED U |
| 40A | WCI 137457100 |
| 40 | 137326000 Frigidaire Motor |
| 40A | 137324300 Frigidaire Wiring Harness |
| 41 | WCI 137282900 |
| 42 | HOSE, RECIR PUMP INLT |
| 43 | 137389000 Frigidaire Pump |
| 45 | 134261300 Frigidaire Clip |
| 45 | 134592700 Frigidaire Washer Drain Hose |
| 45 | 131453000 Frigidaire Bushing |
| 45 | WCI 131663500 |
| 45 | WCI 134745300 |
| 48 | 131306234 Frigidaire Clamp Pump |
| 49 | HOSE, TUB TO PUMP REC |
| 51 | WCI 137466300 |
| 52 | 131202300 Frigidaire Screw |
| 53 | 5304401845 Frigidaire Tube Pressure |
| 56 | 137050600 Frigidaire Screw 5/16-18-2A Un |
| 57 | 134716700 Frigidaire Washer |
| 58 | 134160900 Frigidaire Screw |
| 62 | 131302800 Frigidaire Drum Vane Screw |
| 67 | WCI 137193200 |
| 68 | 131707800 Frigidaire Drain Hose Ring |
| 69 | 5303309503 Frigidaire Clip |
| 80 | 137511100 Frigidaire Screw |
