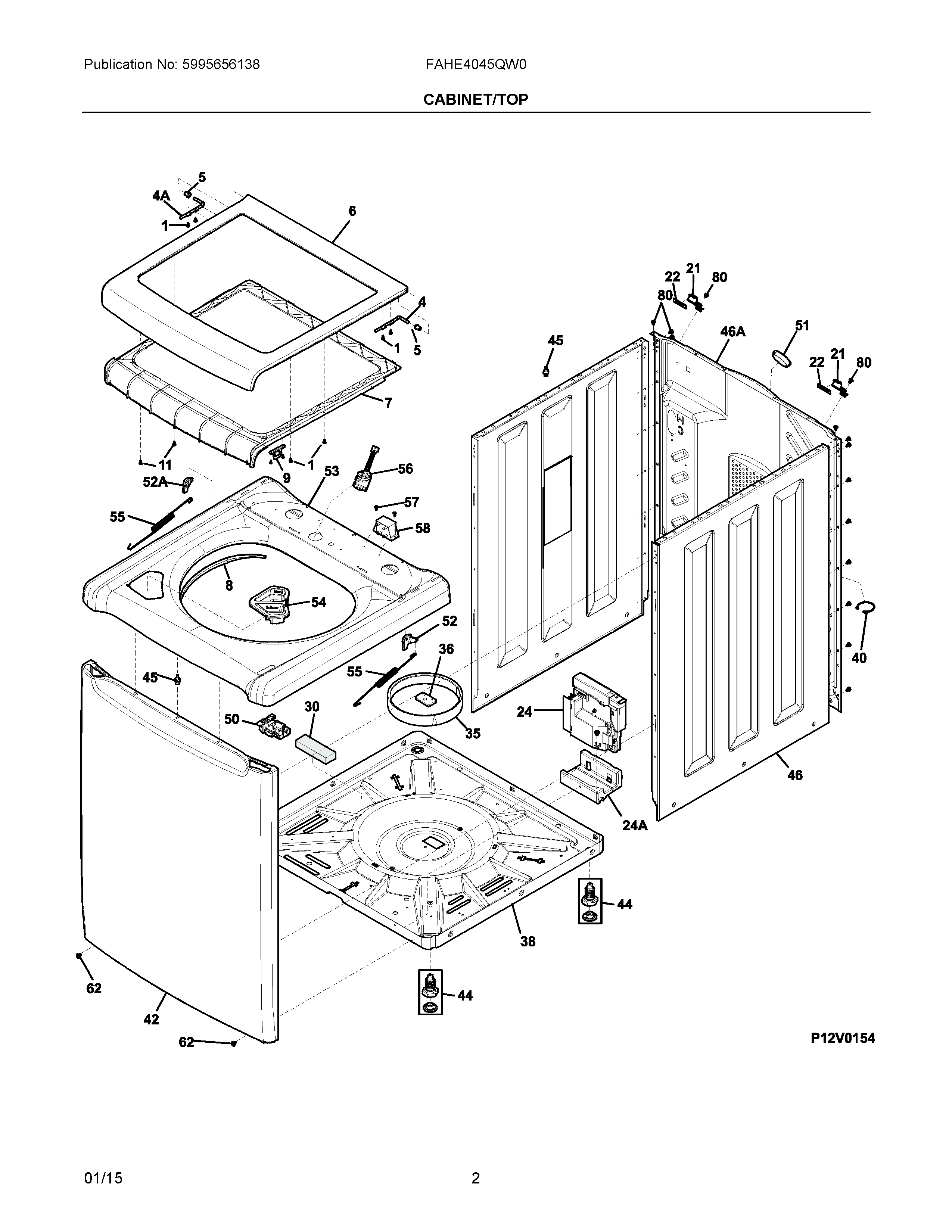

FAHE4045QW0 02 – CABINET/TOP

Products

Position	Product
NIA	5303209428 Frigidaire Serv.Cord Bushing
NIAA	131205500 Frigidaire Screw
NIAA	131168200 Frigidaire Dryer Screw
NIA	134261300 Frigidaire Clip
1	134203900 Frigidaire Scr 6-32X.337 Pph D
4	HINGE BAR, RH
4A	5304500662 Frigidaire Hinge Bar
5	WCI 137456300
6	PANEL, LID GLASS, WHITE
7	ASMY, FRAME & GLASS
8	GASKET, GLASS, FSW
9	WCI 137512000
11	3204368 Frigidaire Screw-Strike
21	WCI 137278500
22	WCI 137331300
24A	WCI 137469200
24	WCI 137469128
30	WCI 131663500
35	SNUBBER RING
36	SHIPPING BLOCK
38	WCI 137493201
40	5303309503 Frigidaire Clip
42	WCI 137363110
44	134548800 Frigidaire Washer Leg Levelling
45	137362600 Frigidaire Pin
46A	WCI 137273201
46	WCI 137272610
50	LID LOCK
51	131453000 Frigidaire Bushing
52	HINGE, STOP W/LUBE, RIGHT
52A	137468501 Frigidaire Hinge
53	PANEL, TOP, WHITE
54	BEXEL, DISPENSER-BL/SF
55	137534000 Frigidaire Washer Lid Spring
56	137533000 Frigidaire Light Assembly
57	134935200 Frigidaire Screw
58	TRANSFORMER
62	131302800 Frigidaire Drum Vane Screw
