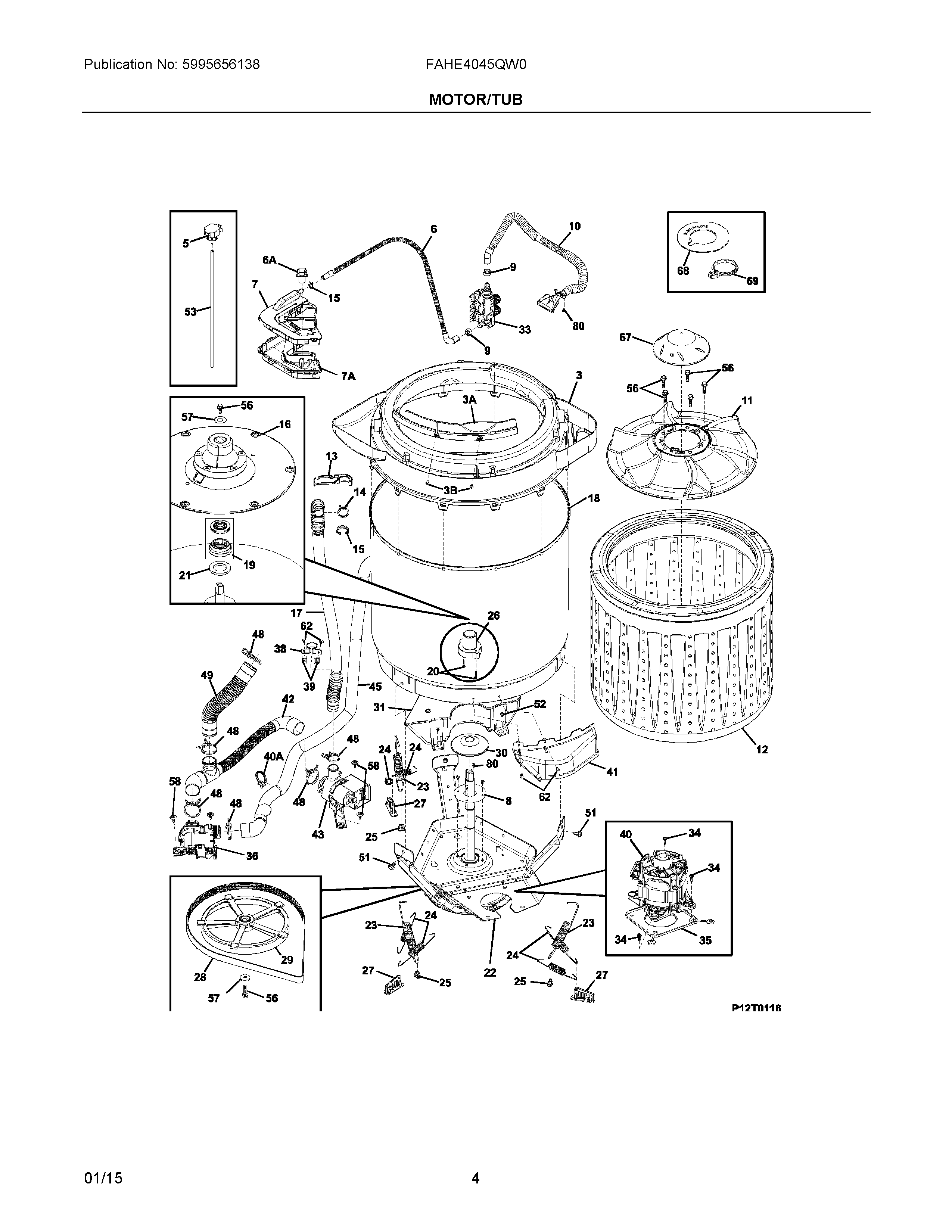

FAHE4045QW0 03 – MOTOR/TUB

FAHE4045QW0 03 – MOTOR/TUB

Written by

in

FAHE4045QW0 03 – MOTOR/TUB

Products

PositionProduct
NIAAWCI 137457100
NIAWCI 131663500
NICWCI 134745300
NIB134261300 Frigidaire Clip
NI131453000 Frigidaire Bushing
NIA131901400 Frigidaire Seal
3AWCI 137419200
3COVER, SPLASH TUB, RECIRCULATING
5137055800 Frigidaire Pressure Sensor
6HOSE, DISPENSER OUT
6ACAP, SIPHON DISP
7ACUP, DISPENSER, SOFT
7COVER, DISPENSER, SOFT
8WCI 137363400
95304488479 Frigidaire Washer Hose Clamp
10137205600 Frigidaire Hose
11WCI 137494000
12TUB, SPIN, H+ W/O LINT FIL
13BRACKET, ROUTING, RECIRC HOSE
14CLAMP, HOSE
155304464772 Frigidaire Refrigerator Wire Tie
16TRUNNION, LARGE
17137364200 Frigidaire Hose
18TUB, SPLASH, AIR DOME/BEARNG
19WCI 137547700
203205150 Frigidaire Tub Bearing Screw
21WCI 137272000
22WCI 137513900
23WCI 137497110
24WCI 137532600
25WCI 137507100
26WCI 137466100
27WCI 137491600
28137051400 Frigidaire Belt Assembly
29137489000 Frigidaire Drive Pulley
30WCI 137049800
31WCI 137466600
33137465100 Frigidaire Valve-3 Coil
34WCI 137470600
35WCI 137510300
36137221600 Frigidaire Washer Drain Pump
38RESTRAINT, HOSE, LOWER
39NUT, SPEED U
40A137324300 Frigidaire Wiring Harness
40137326000 Frigidaire Motor
41WCI 137282900
42HOSE, RECIR PUMP INLT
43137389000 Frigidaire Pump
45D134592700 Frigidaire Washer Drain Hose
48131306234 Frigidaire Clamp Pump
49HOSE, TUB TO PUMP REC
51WCI 137466300
52131202300 Frigidaire Screw
535304401845 Frigidaire Tube Pressure
56137050600 Frigidaire Screw 5/16-18-2A Un
57134716700 Frigidaire Washer
58134160900 Frigidaire Screw
62131302800 Frigidaire Drum Vane Screw
67WCI 137193200
68131707800 Frigidaire Drain Hose Ring
695303309503 Frigidaire Clip
80137511100 Frigidaire Screw
