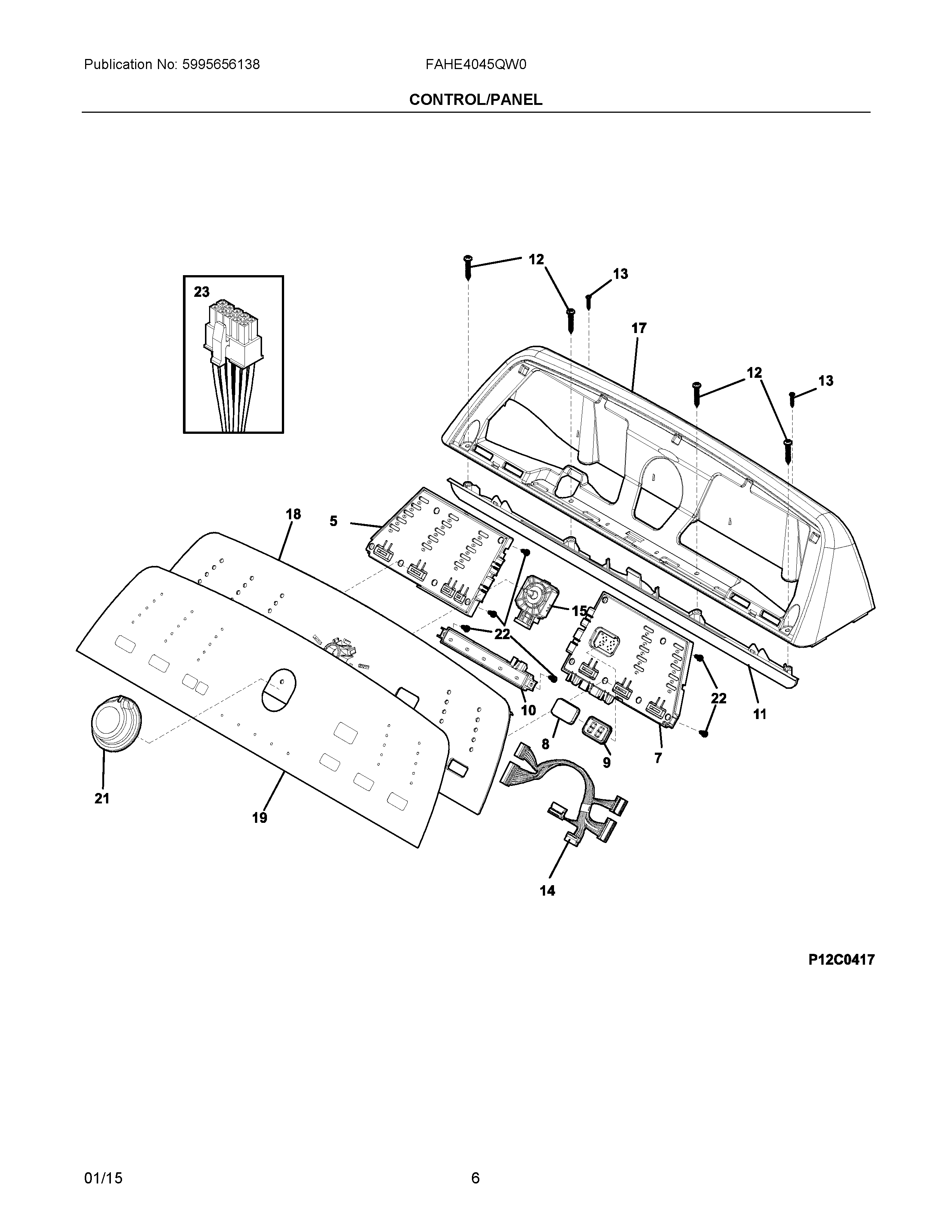

FAHE4045QW0 04 – CONTROL/PANEL

FAHE4045QW0 04 – CONTROL/PANEL

Written by

in

FAHE4045QW0 04 – CONTROL/PANEL

Products

PositionProduct
NIWCI 5304500663
5137363800 Frigidaire Board
75304500657 Frigidaire Board
8WCI 137347700
9WCI 137367700
10137363900 Frigidaire Control Board
11WCI 137351100
12WCI 137362400
13131168200 Frigidaire Dryer Screw
14137203500 Frigidaire Harness
15137493700 Frigidaire Switch
17CONSOLE, SHELL J, WHITE
18INSERT, 7 BUTTON CONSOL
19OVERLAY, FRONT
21KNOB, CYCLE SELECTOR
22SCREW (2)
23HARNESS, MAIN WASHER
