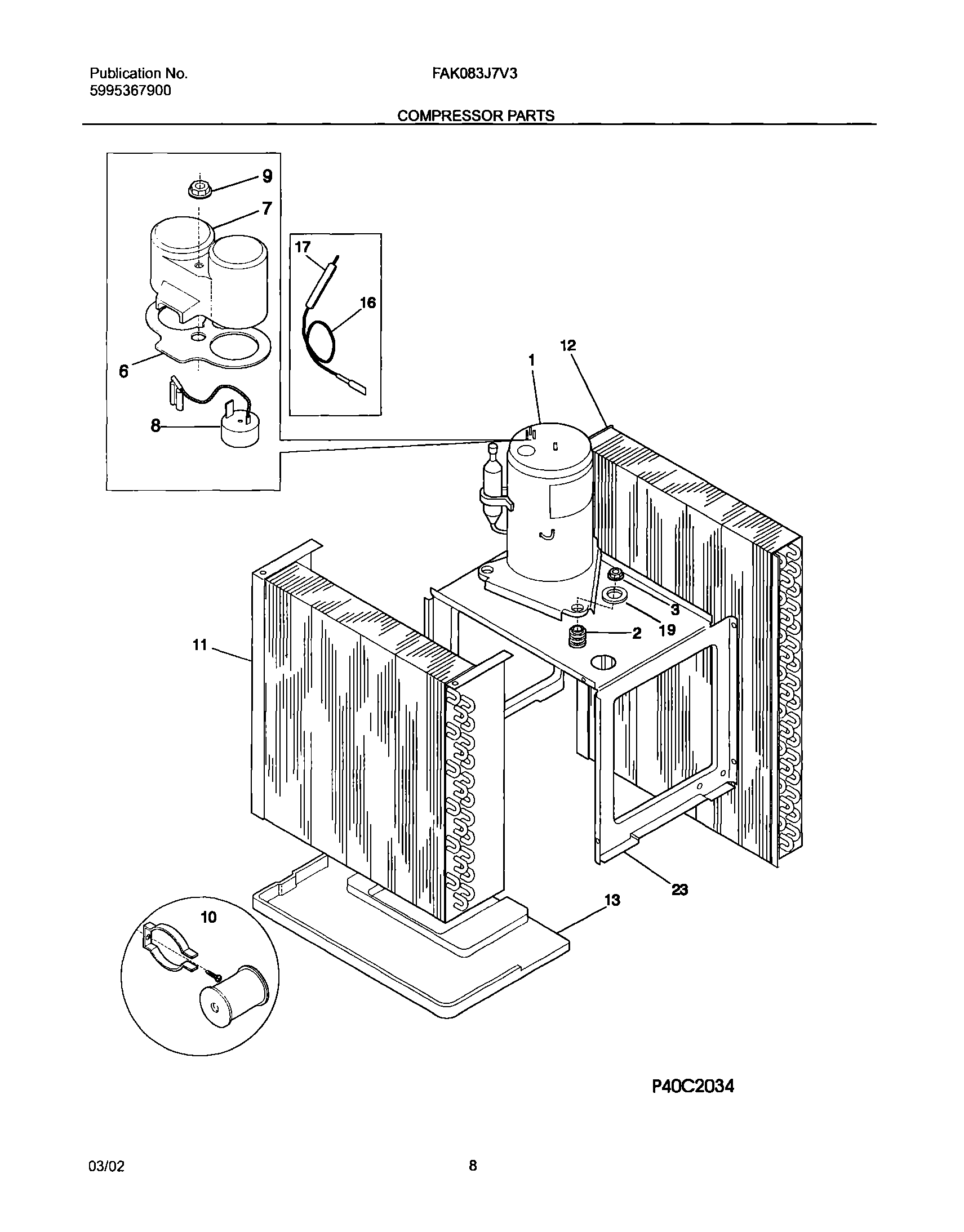

FAK083J7V3 09 – COMPRESSOR PARTS

Products

Position	Product
NI	WCI 309112501
1	WCI 5304406829
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	GASKET-TERMINAL
7	COVER-TERMINAL
8	WCI 3202920
9	WCI 5303211017
10	WCI 5303317601
11	WCI 309617003
12	WCI 309617203
13	WCI 309624101
16	WCI 5303303064
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
19	WASHER,COMPRESSOR MTG
23	Base,compressor mt.
