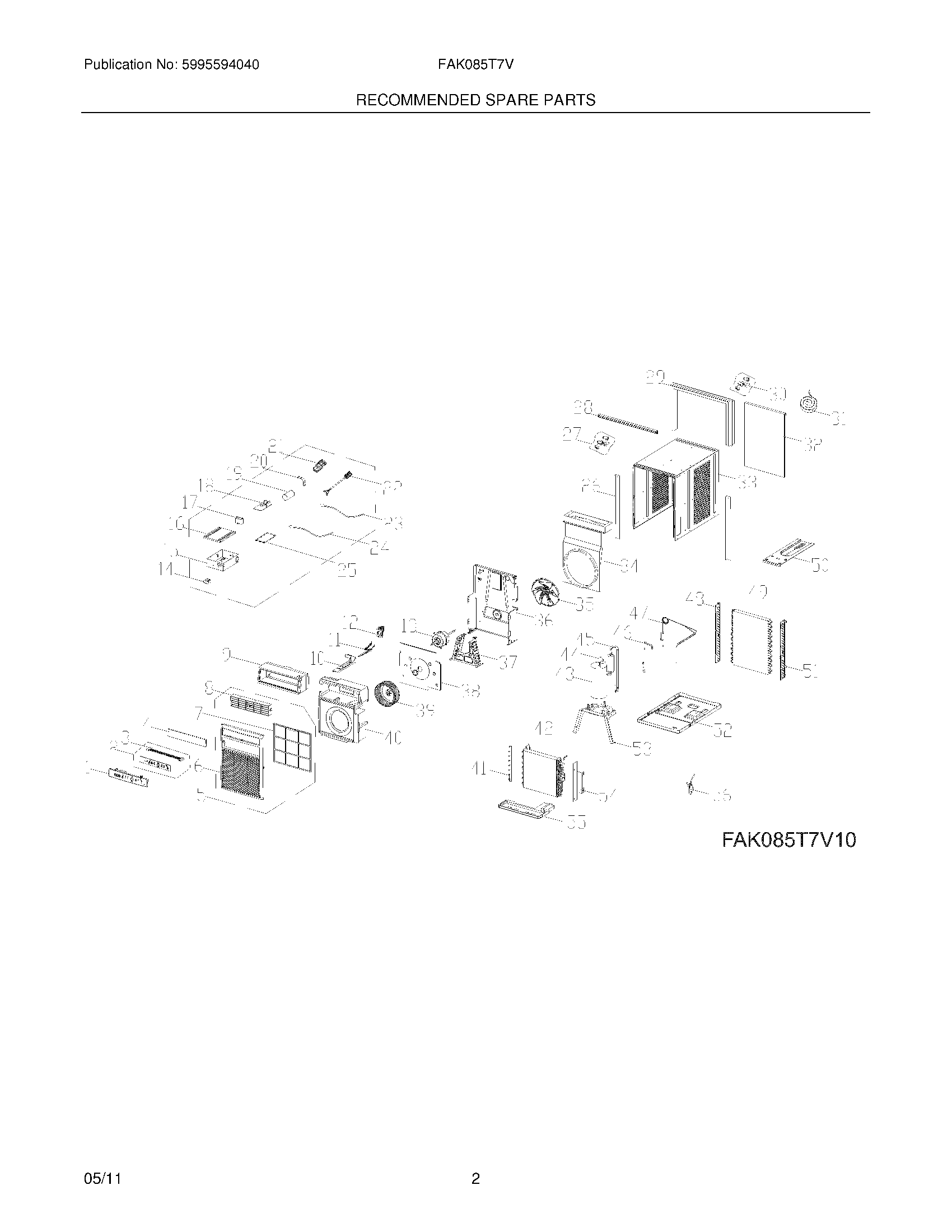

FAK085T7V11 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	Control Panel,display/input ,w/overlay
2	5304476460 Frigidaire Air Conditioner PC Board
3	5304480400 Frigidaire Air Conditioner Wire
4	WCI 5304476461
5	WCI 5304477276
6	WCI 5304471348
7	5304525657 Frigidaire Filter
8	WCI 5304477283
9	WCI 5304471353
10	5304476466 Frigidaire SUPPORT
11	WCI 5304477284
12	5304471356 Frigidaire DOOR
13	WCI 5304483190
14	5304470989 Frigidaire Air Conditioner Transformer
15	WCI 5304476468
16	WCI 5304476469
17	WCI 5304473971
18	5304476470 Frigidaire Air Conditioner PC Board
19	5304473968 Frigidaire CAPACITOR
20	WCI 5304476471
21	WCI 5304471273
22	WCI 5304477286
23	WCI 5304475757
24	WCI 5304476473
25	WCI 5304476251
26	WCI 5304471648
27	5304471644 Frigidaire Screw KIT
28	WCI 5304477287
29	WCI 5304477288
30	5304524246 Frigidaire Installation Kit
31	WCI 5304471646
32	WCI 5304476477
33	WCI 5304477289
34	WCI 5304471367
35	WCI 5304475756
36	WCI 5304483191
37	WCI 5304483192
38	WCI 5304471361
39	WCI 5304483193
40	WCI 5304471359
41	WCI 5304476504
42	WCI 5304483198
43	WCI 5304476002
44	Overload Protector,compressor
45	WCI 5304483199
46	WCI 5304483200
47	WCI 5304483201
48	WCI 5304476492
49	WCI 5304483202
50	WCI 5304477295
51	WCI 5304476495
52	WCI 5304477296
53	WCI 5304483197
54	WCI 5304476512
55	WCI 5304471379
56	5304476367 Frigidaire Air Conditioner Filter Drier
