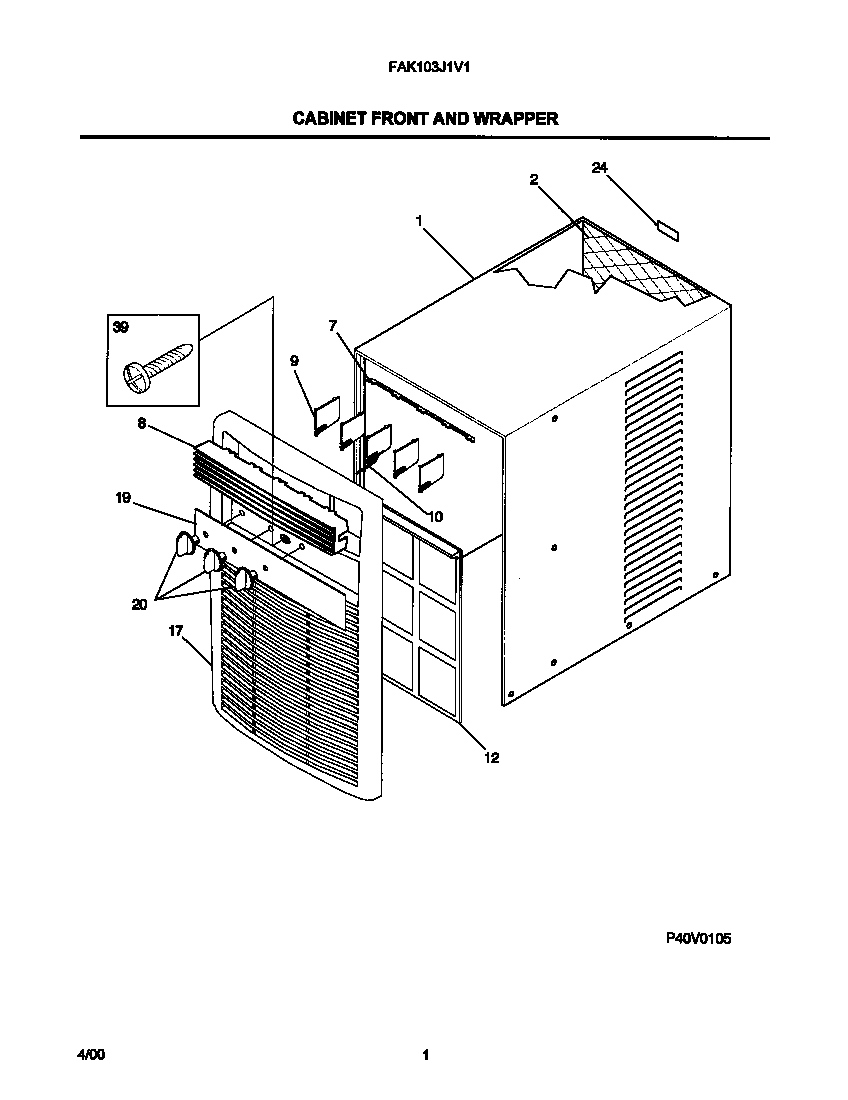

FAK103J1V1 02 – CABINET FRONT AND WRAPPER

FAK103J1V1 02 – CABINET FRONT AND WRAPPER

Written by

in

FAK103J1V1 02 – CABINET FRONT AND WRAPPER

Products

PositionProduct
*77520Louver Assy,Incl-7,8,9,10
1Cabinet,wrapper/sleeve
2WCI 5303317604
7WCI 5304414087
8Louver horizontal
9Louver,vertical
10Louver,vertical ,w/handle
12Filter air front
17Front Assy,complete
19Dial Plate
20KNOB-CONTROL(1403,W/6502)
39134178901 Frigidaire Screw
43Frame,cabinet front
