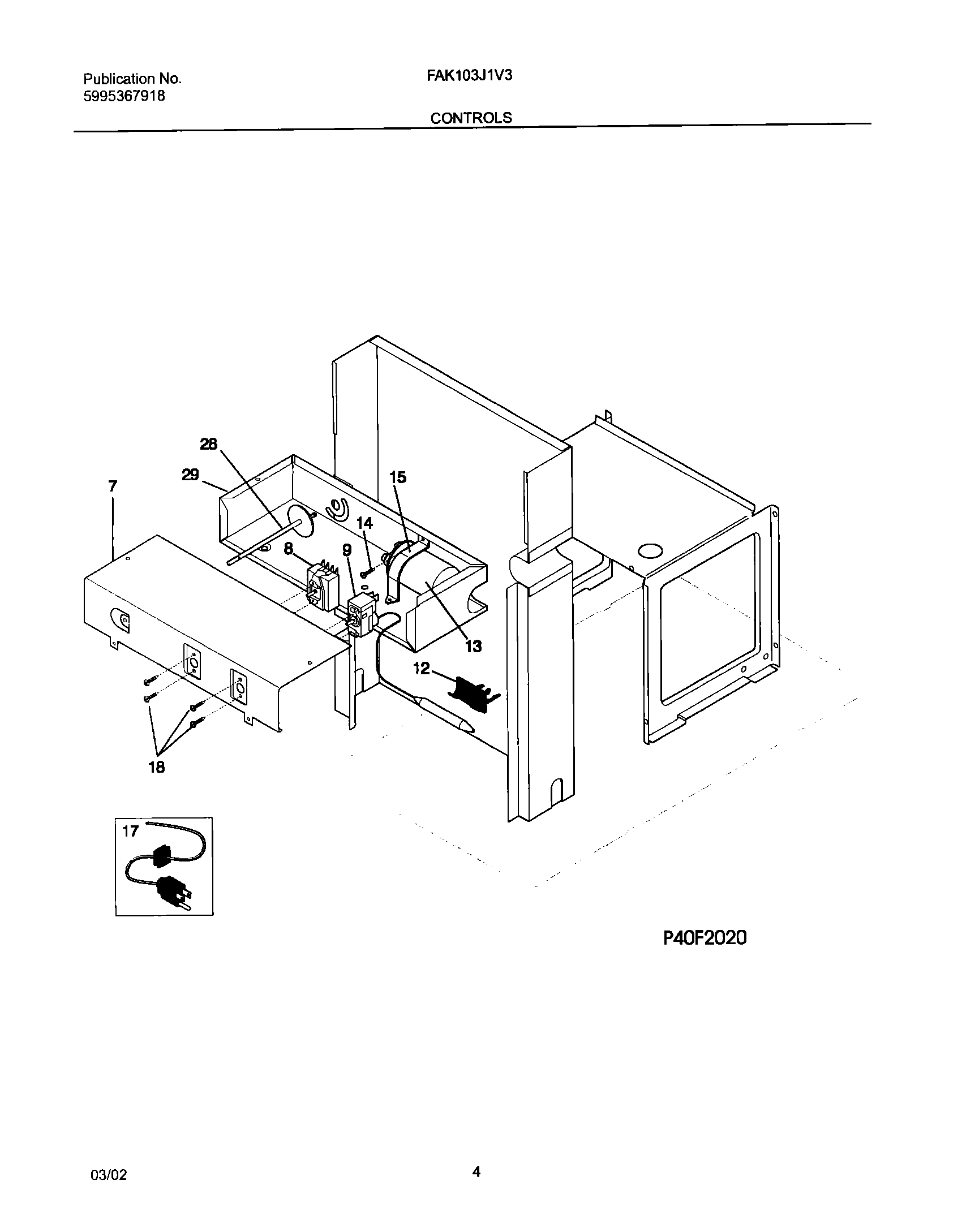

FAK103J1V3 05 – CONTROLS

Written by

Products

Position	Product
NI	134178901 Frigidaire Screw
7	WCI 309606501
8	SWITCH-SELECTOR
9	Control temperature
12	WCI 309321201
13	WCI 5304416302
14	Screw,Ph truss hd ,8-18 x 0.38 ,ground
15	STRAP – CAPACITOR
17	Cord-electric power,type A ,16 AWG
18	SCREW
28	WCI 309625301
29	WCI 309606402
