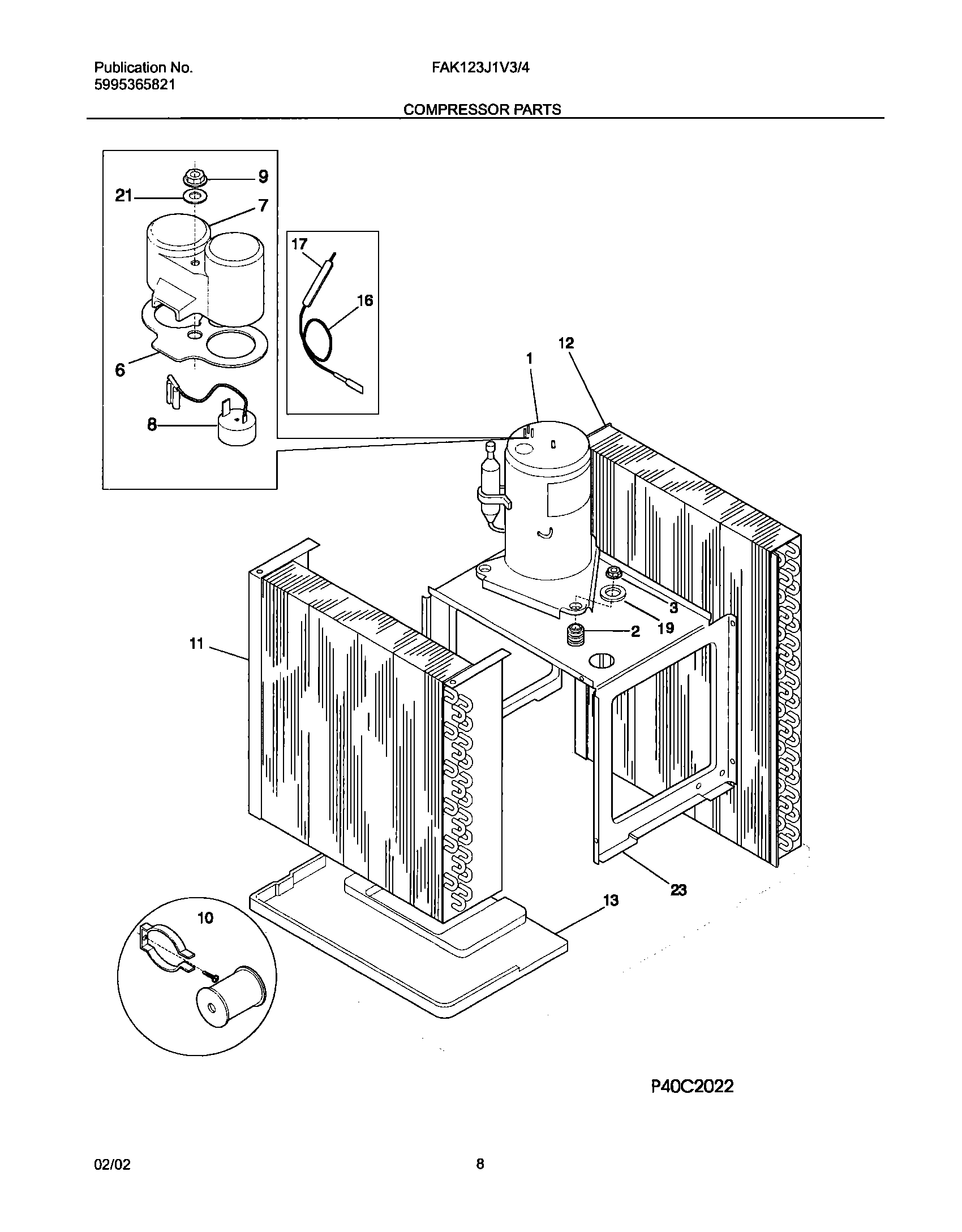

FAK123J1V3 09 – COMPRESSOR PARTS

Written by

Products

Position	Product
NI	WCI 309112501
1	Compressor
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 3201668
7	WCI 5304405245
8	WCI 5304403611
9	WCI 3201670
10	WCI 5303317601
11	WCI 309617007
12	WCI 309617205
13	WCI 309624101
16	Capillary Tube,45 inch long ,cut to length
17	WCI 309325201
19	WASHER,COMPRESSOR MTG
23	WCI 309614106
