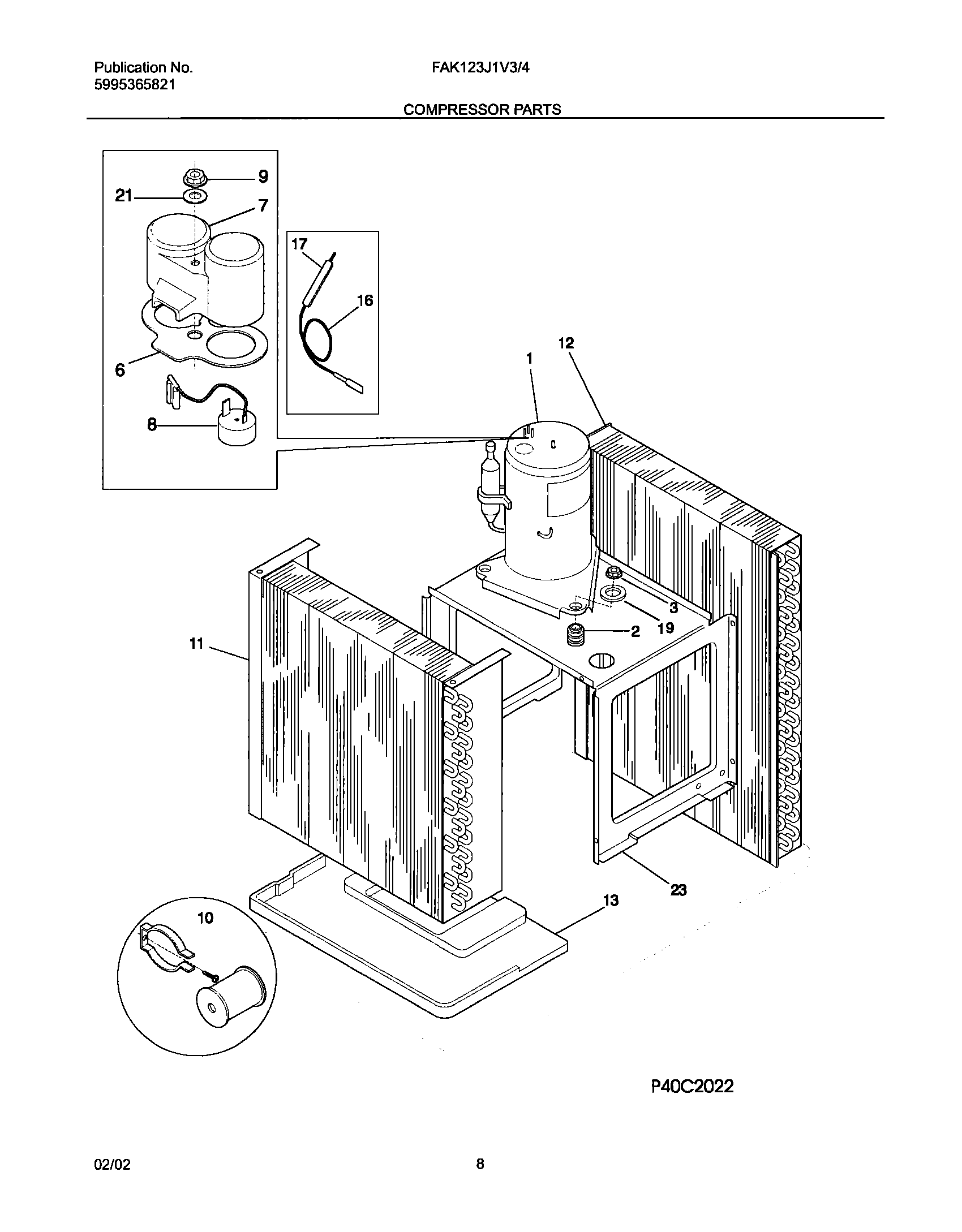

FAK123J1V4 09 – COMPRESSOR PARTS

Products

Position	Product
NI	WCI 309112501
1	WCI 309603111
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 5303291330
7	WCI 5304416126
8	WCI 5304419795
9	WCI 5303294292
10	WCI 5303317601
11	WCI 309617007
12	WCI 309617207
13	WCI 309624101
16	Capillary Tube,45 inch long ,cut to length
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
19	WASHER,COMPRESSOR MTG
21	WCI 5303293809
23	WCI 309614106
