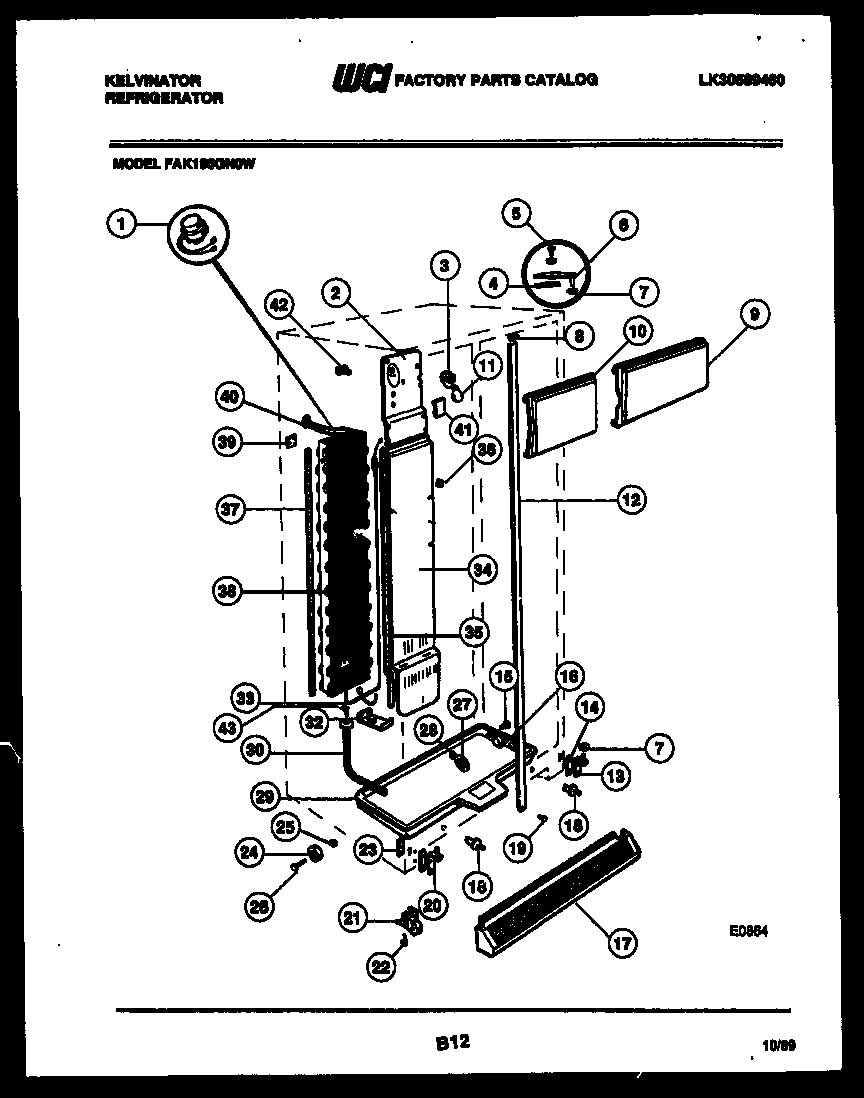

FAK190GN0D 04 – CABINET PARTS

Products

Position	Product
1	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
2	WCI G169481-01
3	218906802 Frigidaire Light Lamp Socket
4	WCI G183861
5	WCI G185566
6A	WCI G183716
6	HINGE-TOP RS
7	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
8	TRIM-MULLN-ALMD
9	LIGHT SHIELD – REFRIGERATOR
10	LIGHT SHIELD – FREEZER
11	316538904 Frigidaire Oven Lamp Light
12	MULLION-ALMD
13A	SCREW – 1/4 X 1 (2)
13	BRACKET-LOWER HINGE
14	SHIM, HINGE
14B	WCI G141673
14A	WCI G142361
16	WCI G164912-03
17	WCI G161905-07
18	5303289051 Frigidaire Refrigerator Light Switch
19	WCI G167125
20	WCI G162994
21	ROLLER ASSEMBLY – FRONT (2)
22	WCI G166171
23	TAPPING, PLATE (2)
24	ROLLER (2)
25	NUT, DAMPER MOUNTING
26	WCI G162809
27A	WCI G174734
27	WCI G174733
28	WCI G163952
29	PAN, DEFROST
30	241957901 Frigidaire Refrigerator Tube-Drain
31	WCI G158022
32	5304455650 Frigidaire Refrigerator Screw
33	WCI G190223
34	COIL COVER-LOWER
35	WCI G174234-01
36	WCI G162703
37	WCI G165233
38	WCI 3007567
39	WCI G169493
40	WCI G186609
41	WCI G165416-02
42A	BUTTON, PLUG, LINER (2)
42C	WCI G169471
42B	WCI G174234-02
42	WCI G163669
42B	WCI G188000-03
43	WCI 08000853
