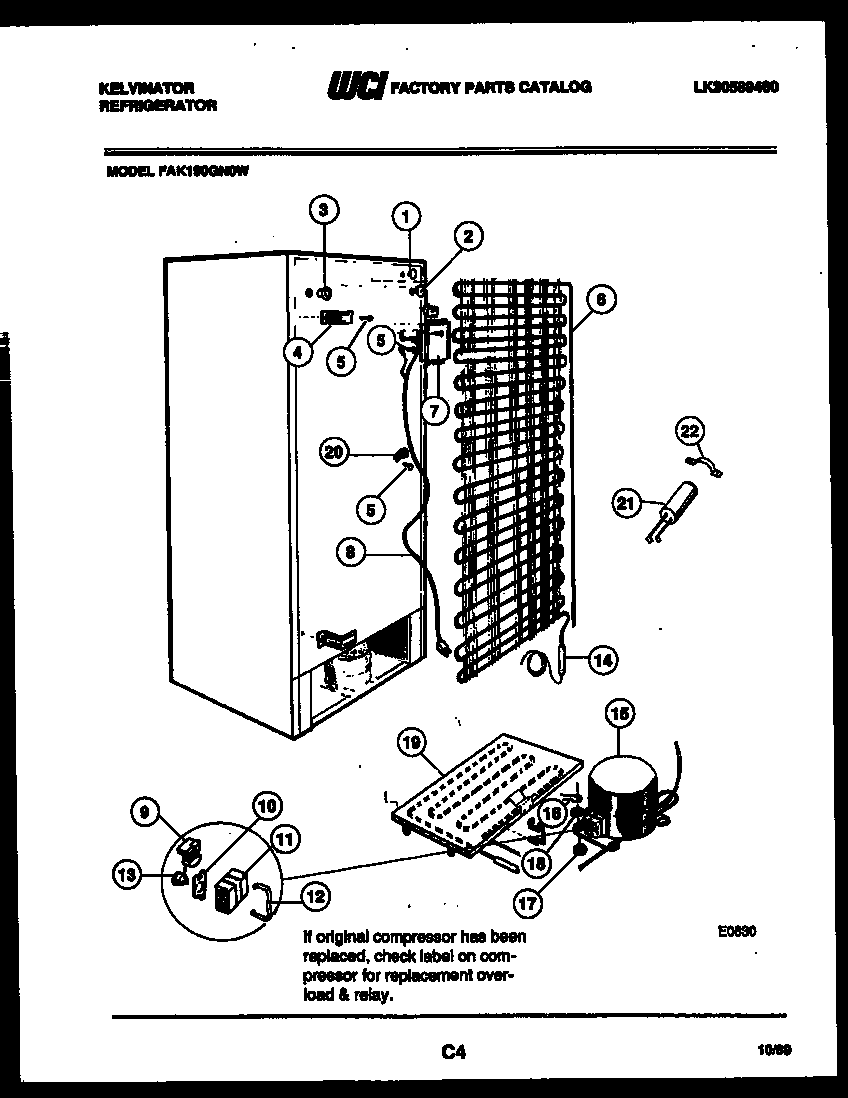

FAK190GN0D 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*949475308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
*94951WCI G189379
*94949WCI 3015098
*94952WCI G189609
*94948WIRING HARNESS-COMPR & LIGHTS
1WCI G174734
2WCI G174733
3TUBE, INSULATION (2)
4BRACKET-CONDENSER MOUNTING (4)
55308000039 Frigidaire Refrigerator Screw
6WCI G188725
7WCI G183584
8CORD, SERVICE
9WCI 3007173
10WCI 3017762
125303006412 Frigidaire Refrigerator Cover Mounting Strap
135303271616 Frigidaire Refrigerator P1-Overload
145303305677 Frigidaire Replacement Filter Dryer Filters
15COMPRESSOR WITH ELECTRICALS
16CLIP (4)
17218513300 Frigidaire Refrigerator Compressor Mount Grommet
18WCI 08003633
19WCI G188724
205303001199 Frigidaire Refrigerator Wiring Harness Clamp
21CAPACITOR-RUN
22STRAP-CAPACITOR MTG
