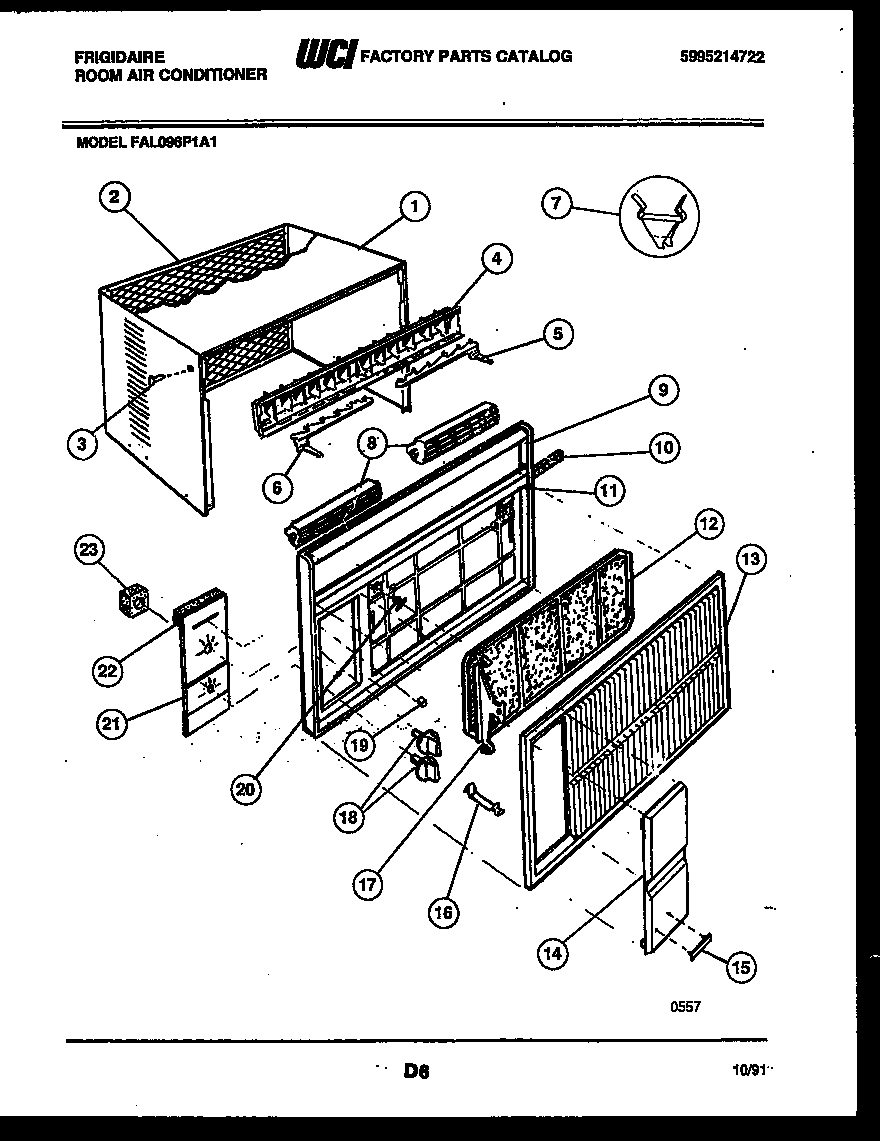

FAL096P1A1 02 – CABINET PARTS

Products

PositionProduct
1WCI 5303207184
2AWCI 5303271903
2WCI 5303210207
3PLUG BTN
4VERT. LOUVER & LINK ASSY.
5LINK – VERT LOUVER RH
6LINK VERTICAL LOUVER LH
7WCI 5303001844
8FRAME-HORIZONTAL LOUVER
9WCI 3204214
10WCI 5308014101
11WCI 08016330
12FILTER, FRAMED
13PANEL – FRONT
14WCI 5308016198
15PLATE-NAME
16CLIP-FRONT TO BASE
17WCI 5308017294
18WCI 5308016109
19WCI 5303002189
20SCREW-FRONT
21WCI 3202876
22WCI 5303001984
23WCI 5303001775
