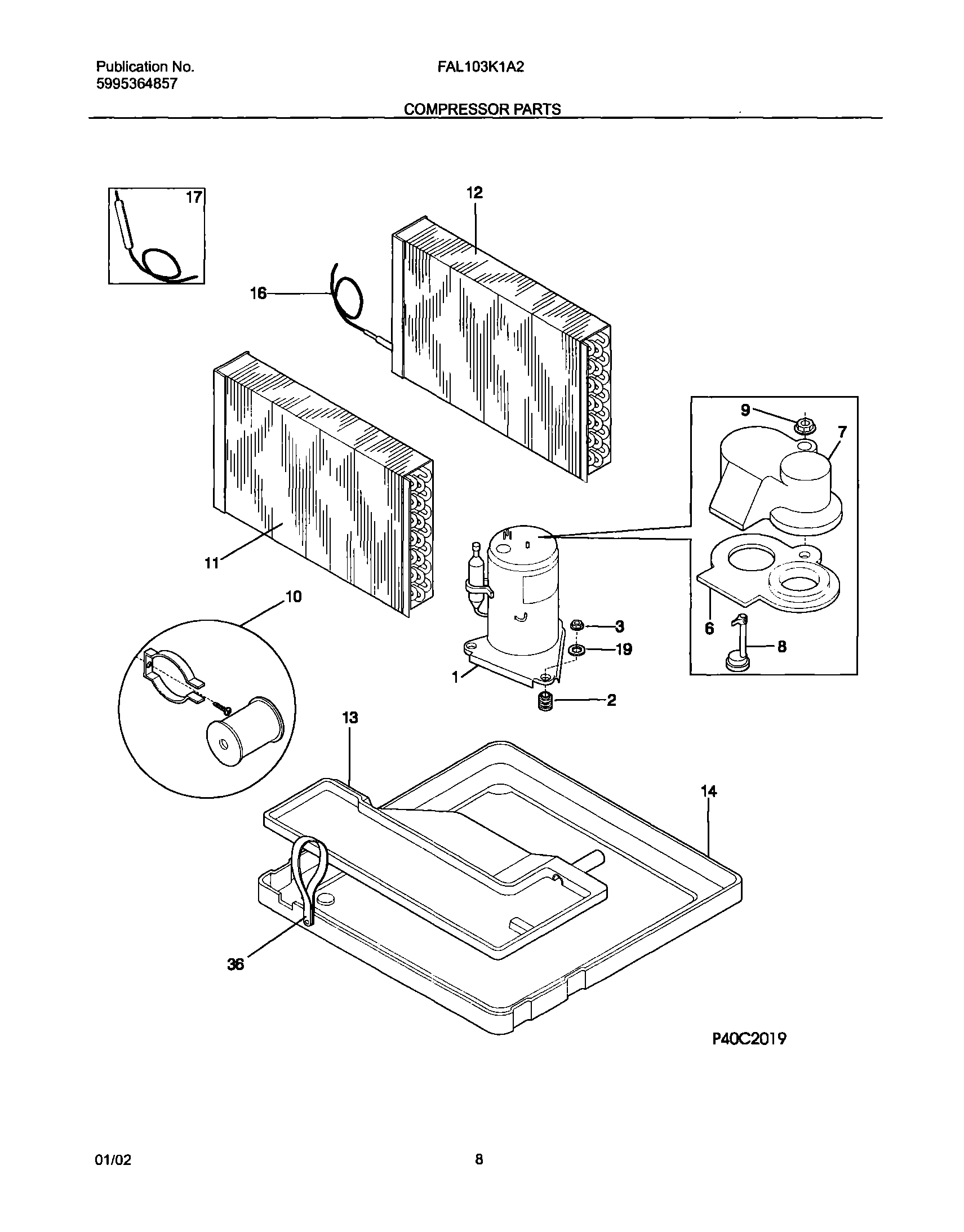

FAL103K1A2 09 – COMPRESSOR PARTS

Written by

Products

Position	Product
NI	WCI 309112501
1	WCI 5304419112
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	GASKET-TERMINAL
7	COVER-TERMINAL
8	WCI 5303295567
9	WCI 5303211017
10	WCI 5303317601
11	WCI 309606101
12	WCI 5304419796
13	WCI 309606001
14	WCI 5304419798
16	Capillary Tube,45 inch long ,cut to length
17	Tube-process
19	WASHER,COMPRESSOR MTG
36	WCI 5303303558
