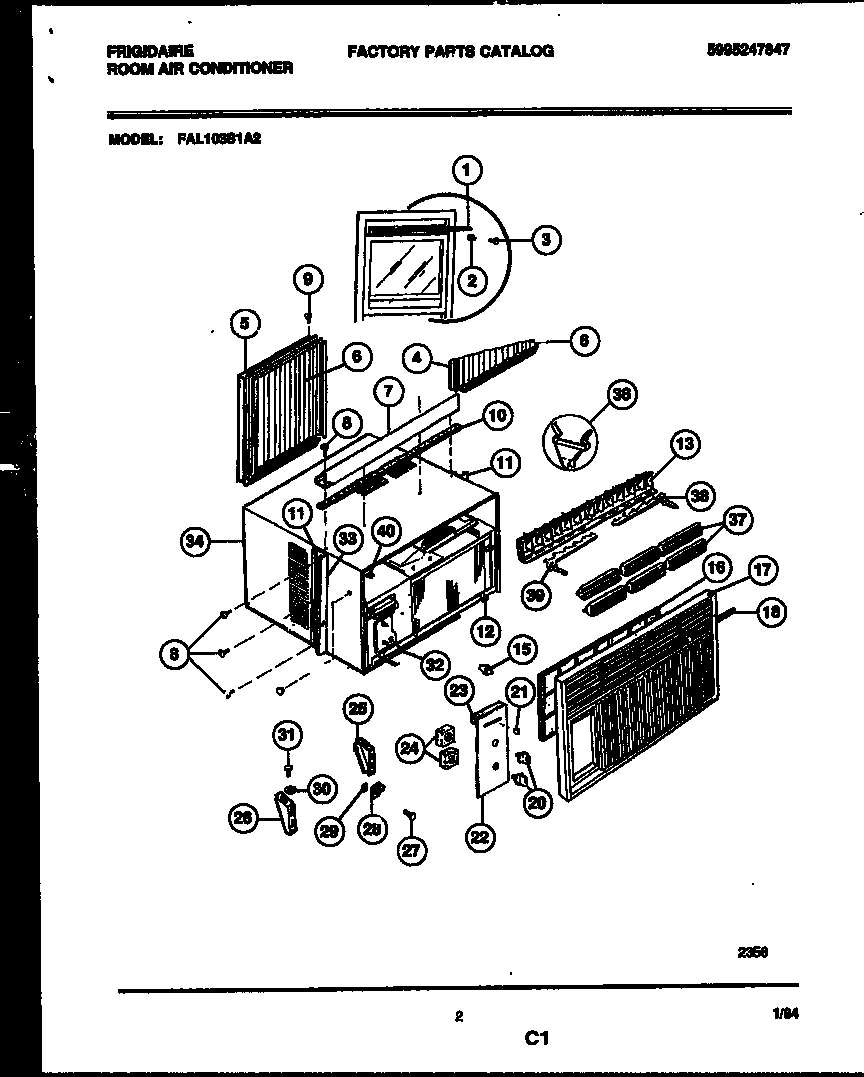

FAL103S1A2 02 – CABINET PARTS

Products

Position	Product
*92711	WCI 5303925121
1	5304407729 Frigidaire Air Conditioner Seal
2	WCI 3018951
3	SCREW-WOOD
4	FRAME EXTENSION LH
5	FRAME EXTENSION RH
6	ACCORDIAN
7	TOP RAIL
8	134178901 Frigidaire Screw
9	WCI 3002801
10	WCI 5303207200
11	WCI 5303301250
12	CLIP-FRONT TO BASE
13	VERT. LOUVER & LINK ASSY.
15	INSERT
16	FILTER-AIR
17	WCI 5303300132
18	WCI 5308014101
19	WCI 5303300134
20	WCI 5303271478
21	WCI 5303271479
22	WCI 5303300135
23	WCI 5303001984
24	WCI 5303001775
25	SUPPORT-RH
26	SUPPORT-LH
27	SCREW – SILL SUPT
28	BRACKET – SUPPORT
29	NUT – BRACKET
30	316205500 Frigidaire Oven Nut
31	SCREW – SUPPORT, 4
32	SEAL
33	SEAL-RETAINER (NON-ILLUSTRATED)
34B	WCI 5303300131
34	WCI 5303301242
34A	WCI 5303301025
35	SCREW
36	WCI 5303001844
37	LOUVER-HORIZ.
38	WCI 5303293786
39	WCI 5303293787
40	NUT – FRONT LOCK
